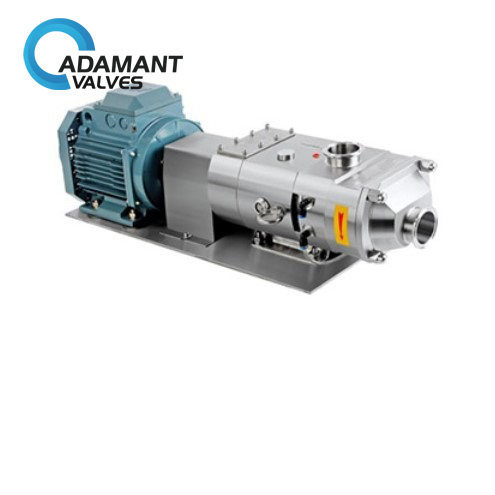

AV-18TS Twin-screw Pump

Availability : In stock

Max flow: 110m³/h

Max Particles: 23mm

Max pressure: 20 bar

Speed range: 10-3500 R.P.M

Working temperature (Max Temperature): -40℃ to 150℃

Material: 100% stainless steel, medium contact part 316L.

SKU: AV-18TS Category: Sanitary Pumps

Twin-screw pump Description

The Twin-screw pump has the self-priming ability and can transport various complex conditions such as solid particles, gas-liquid mixture, high viscosity, low viscosity, and material transportation and extraction. It is not only used for material extraction and conveying, but is also applicable to CIP and SIP systems. It can reduce pipeline, valve control, and CIP dedicated pumps, improve efficiency and reduce costs. The pump also has the performance that other volumetric pumps do not have, such as no pulse phenomenon, no damage to particles, high pressure, speed range, and large flow range.

Adamant Valves Twin Screw Pump is built on a robust, reliable platform that meets stringent hygienic standards.

Twin-screw pump Specifications

Max flow	110m³/h
Max Particles	23mm
Max pressure	20 bar
Speed range	10-3500 R.P.M
Working temperature (Max Temperature)	-40℃ to 150℃
Surface treatment	Ra≤0.6μm; EP=Ra0.4μm
Material	100% stainless steel, medium contact part 316L.
