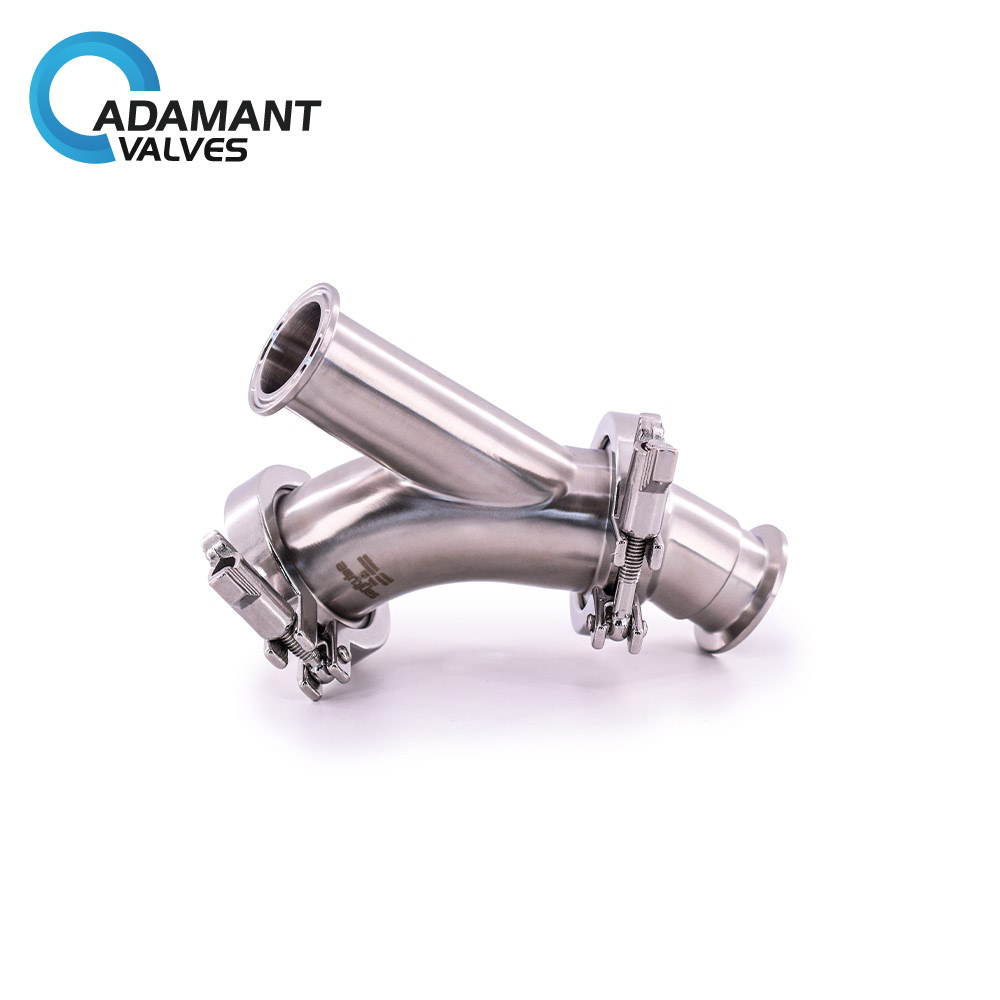

AV-2TCY Tri-Clamp Y-Ball Check Valve

Availability : In stock

Material: 316L Contact Surfaces with EPDM Ball

Operating Temperature Range: 15°F to 200°F

Maximum Operating Pressure: 150 PSI

Replacement Seat Available

Field Service

Tri-Clamp Y-Ball Check Valve Description

In Y-Ball Check Valve design, pressure forces the ball into the branch of the valve, which allows flow. When the liquid stops and pressure equalizes, the ball drops back into the seat and prevents backflow. If reverse flow occurs, the pressure causes the ball to seal firmly against the seat, which will prevent leakage.

This Tri-Clamp Y-Ball Check Valve provides backflow prevention for stainless steel process lines. Its simple, robust design delivers years of reliable service.

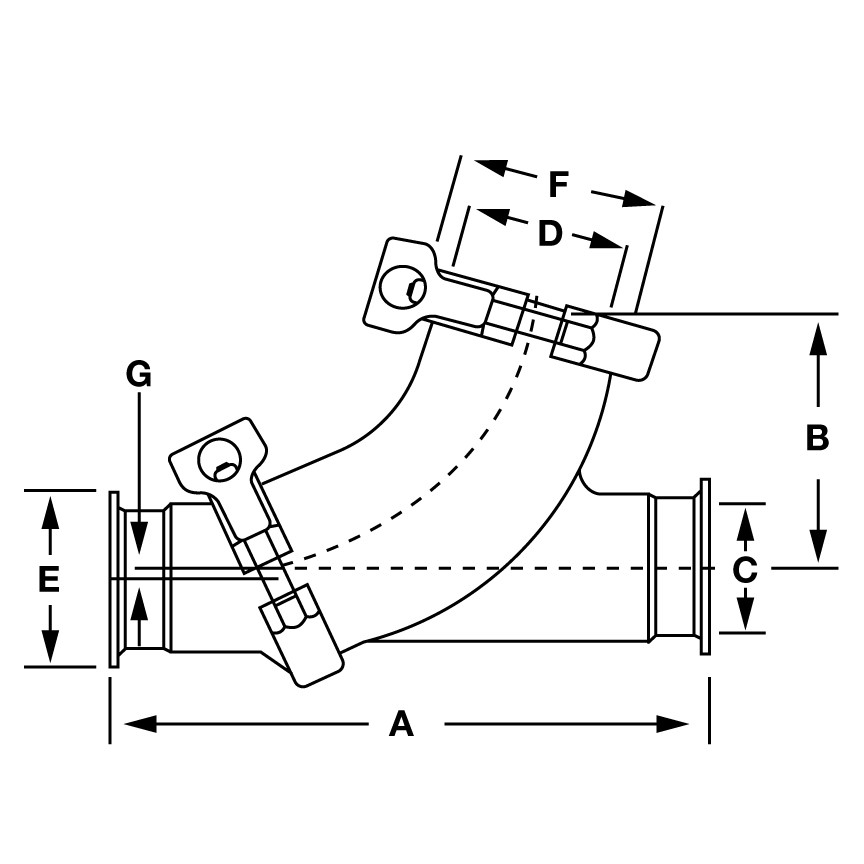

Tri-Clamp Y-Ball Check Valve Specifications

Valve Size	Clamp and Cap Size	Dimensions							Ball Diameter
Valve Size	Clamp and Cap Size	A	B	C	D	E	F	G	Ball Diameter
1-1/2″	2″	7.500	3.300	1.360	1.870	1.980	2.510	0.160	1.600
2″	2-1/2″	8.500	3.900	1.860	2.330	2.510	3.040	0.160	2.100
2-1/2″	3″	10.000	4.500	2.370	2.870	3.040	3.570	0.160	2.700
3″	4″	11.500	5.300	2.870	3.830	3.570	4.680	0.160	3.600
