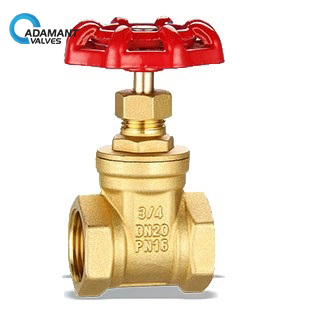

AV-TBGV Threaded Brass Gate Valve
Availability :
In stock
Materials: brass/bronze
Size: DN15-DN50
Max Temp. : -20℃-120℃
Set Pressure: 1.6MPa
Applicable Medium: water, non-corrosive medium
Threaded Brass Gate Valve Description
Threaded Brass Gate Valve is a control component in the pipeline system that is driven by the handwheel to rotate the gate to move along the vertical direction of the channel axis to cut off the medium. It has the advantages of small fluid resistance, small opening and closing torque, and unrestricted medium flow direction.

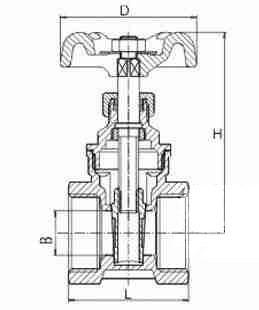

Threaded Brass Gate Valve Specification
| DN | A | B | C | D |
| 15 | 45 | 11 | 65 | 54 |
| 20 | 51 | 11 | 71 | 60 |
| 25 | 64 | 15 | 82 | 72 |
| 32 | 75 | 16 | 95 | 80 |
| 40 | 82 | 17 | 109 | 100 |
| 50 | 100 | 19 | 122 | 110 |
Threaded Brass Gate Valve Applications
Threaded Brass Gate Valve is a control component in the pipeline system that is driven by the handwheel.
