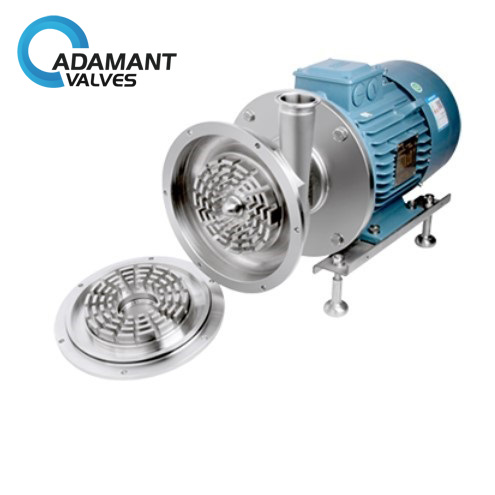

AV-18SE Single-stage Emulsification Homogenization Pump
Max Flow rate: 50m3/h
Max power: 55KW
Max temperature: -20℃ to 140℃
Material: 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5%
Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
Machine seal: single seal and double seal
Inlet/Outlet Connection: Thread, Clamp, Flange, Aseptic Flange
Single-stage Emulsification Homogenization Pump Description
The Single-stage Emulsification Homogenization Pump is an in-line continuous production emulsified homogenizing pump consisting of stator and rotor. The treated material will be dispersed, sheared, refined, crushed, emulsified, and mixed through 6-10 layers of rotor and stator. homogenization, etc. Compared with the traditional production process, the pump is simpler, more convenient, and more optimized, it improves the production efficiency and quality of the material to be treated.
Single-stage Emulsification Homogenization Pump Specifications
| Max Flow rate: | 50m3/h |
| Max power: | 55KW |
| Max temperature: | -20℃ to 140℃ |
| Material refinement
Media refinement |
≤ 60 GRIT (≈ 300μm)
≤60 mesh (about 300μm) |
| Material: | 304 /316L, 1.431/1.4404
ASME BPE 316L, 1.4435 NB2 Fe≤0.5% |
| Surface treatment: | ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm |
| Machine seal: | single seal and double seal |
| Inlet/Outlet Connection: | Thread, Clamp, Flange, Aseptic Flange |
Single-stage Emulsification Homogenization Pump Applications
Mainly used in food, beverage, pharmaceutical, health care, fine chemicals, coatings, pesticides, daily washing, paper, and other industrial fields.
Related products: AV-23SCP Sanitary Centrifugal Pump, AV-18AVB Sanitary Liquid Ring Pumps, AV-18AVH Sanitary Centrifugal Pumps
