SS-SVP Sanitary View Port

Availability : In stock

Specifications:

  • USP Class VI (tested to confirm biocompatibility)
  • BPE Compliant and TUV Approved
  • Sight glass fused to metal conforming to DIN7079
  • Borosilicate glass to USP Type I and DIN7080
  • Standard surface finish of 10 Ra µ-in (0.25 µm)
  • Material to ASTM/ASME, TUV and DIN/EN standards
  • Certificate of Conformity to EN 10204-3.1B or 3.1A
  • Pressure Equipment Directive 97/23/EG
SKU: SS-SVP Category:

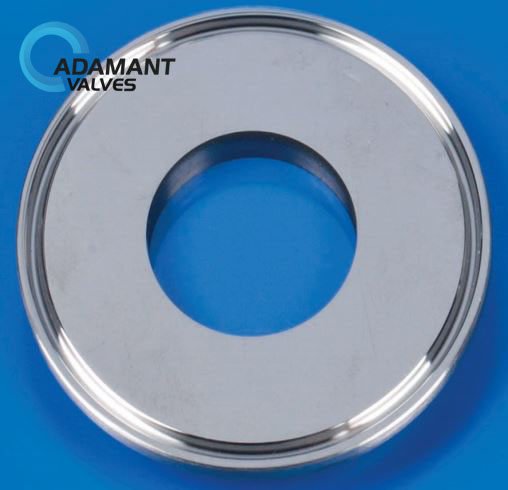

Sanitary View Port Description:

The strongest, most secure sanitary sight glass available, Viewport’ mechanically prestressed windows are available in a sanitary clamp design for sight ports in processing applications or in line visual flow indicators.

Unlike some other sight glasses, viewport sight glasses meet the USP Type 1 standard for pharmaceutical use.

Described as offering the optics of glass and the strength of steel, these glass elements provide a level of safety, and useful service life, well beyond that provided by conventional tempered glass or plastic in sanitary service. Even at the most extreme temperatures (as high as 536°F) or in overpressure situations, sudden, total failure – that involving leakage or explosive shattering of the glass – essentially never occurs.



Sanitary View Port Specifications:

  • USP Class VI (tested to confirm biocompatibility)
  • BPE Compliant and TUV Approved
  • Sight glass fused to metal conforming to DIN7079
  • Borosilicate glass to USP Type I and DIN7080
  • Standard surface finish of 10 Ra µ-in (0.25 µm)
  • Material to ASTM/ASME, TUV and DIN/EN standards
  • Certificate of Conformity to EN 10204-3.1B or 3.1A
  • Pressure Equipment Directive 97/23/EG

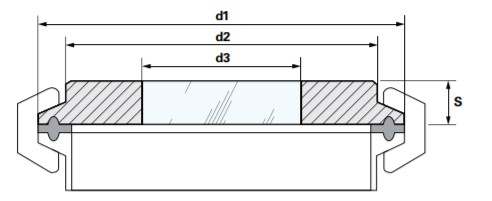

Sanitary View Port Specifications



Sanitary View Port Applications:

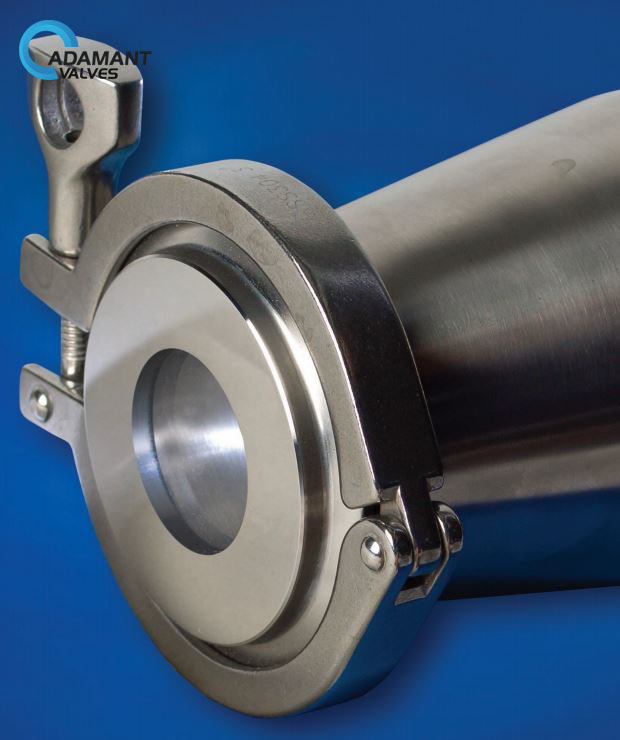

Sanitary View Port is manufactured to fit sanitary clamp connections. With simple, fast installation and no risk of breakage, this sleek, compact, one-piece design provides a cleaner look, fewer bacteria traps, and unsurpassed safety. The View Port sight glass can be used as a viewable port mounted on a ferrule, a “cross” for inline visual flow indication, or as a light port. Many other connection types are also available.
