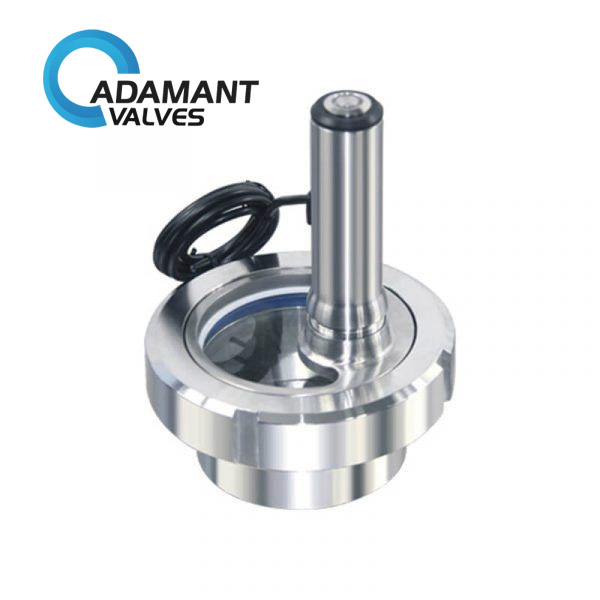

AV-24U Sanitary Union Sight Glass
Features
- 304 shell, high light white cold light source/waterproof, explosion-proof design
- DC 24V
- Precast cable 2M, precast plugs 2 core pinhole
- Switch indicator.
Sanitary Union Sight Glass Description
Sanitary Union Sight Glass is constructed from hygienic stainless steel, borosilicate glass for work temperatures up to 130-celsius degrees, resistant pressure up to 10bar, with FDA-approved gasket, full bore hygienic design, sight glass commonly used in the piping system, tank or vessel, food processing, dairy, daily chemical, pharmaceutical industries.

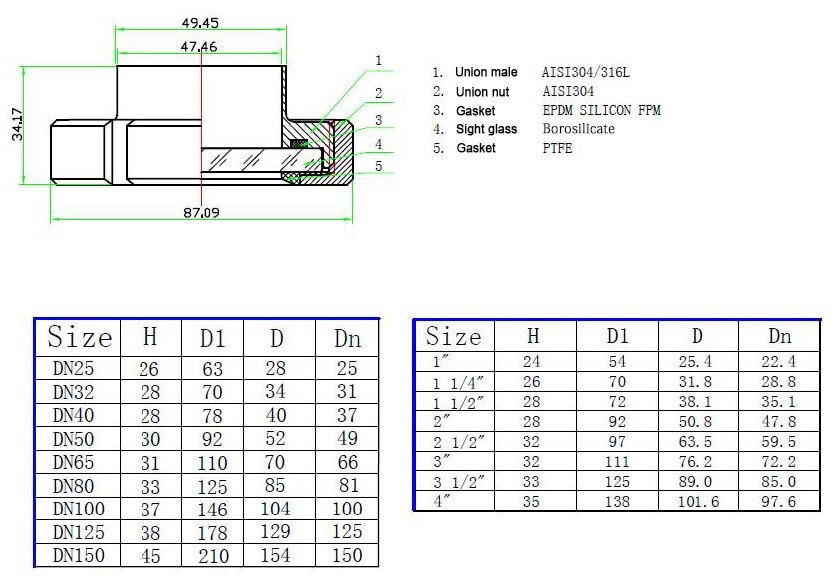

Sanitary Union Sight Glass Specifications
Connection Size | 1″ to 6″(DN25- DN150) |
Body Material | AISI 304 or 316L, (EN1.4301/EN1.4404). |
Glass Material | borosilicate |
Temperature | -10°C to 130°C |
Max pressure | 145psi (10bar) |
Seal | EPDM FDA approved |
Certification | US FDA Certification |
Sanitary Union Sight Glass Applications
Sanitary Union Sight Glass is commonly used in the piping system, tank or vessel, food processing, dairy, daily chemical, and pharmaceutical industries.
The welded sight glass with threaded ferrule fittings. Wellgreen union-type sight glass could be used for observing the bioreactor, lab. blender, sanitary filters, processing vessels, and other closed equipment, it is widely used for brewery, dairy, food, cosmetic, and bio-pharmaceutical industries.
