AV-29SG Sanitary Tubular Sight Glass

Availability : In stock

Materials:

Protective Sleeve: Stainless Steel, Tempered glass
Gasket: VMQ FDA 177.2600

Size: DN25/1″-DN150/6″

Operating Temp. : -10 to 120℃

Max Pressure: 10 bar

Connections: Clamp, weld, thread, flange

Standard: IDS, BS, RJT, SMS, DIN

Special characteristics:

Full bore design
Grid-like protective cover
Can be used vertically or horizontally

Sanitary Tubular Sight Glass Description

Sanitary Tubular Sight Glass is comprised of a stainless-steel frames and tempered glass. Through it, operators can observe the flowing of the media clearly and precisely in the fields of food, cosmetics, pharmaceutical, and fine chemicals industries.

Sanitary Tubular Sight Glass Specification

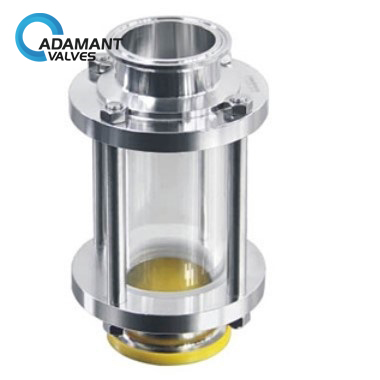

Sanitary Tubular Sight Glass (Standard Type)

Size	H	D	D1	Dn
DN10	140	78	13	10
DN15	140	78	18	15
DN20	140	78	22	19
DN25	140	78	28	25
DN32	140	86	34	31
DN40	140	90	40	37
DN50	142	102	52	49
DN65	146	124	70	66
DN80	150	139	85	81
DN100	156	154	104	100
DN125	170	185	129	125
DN150	180	215	154	150

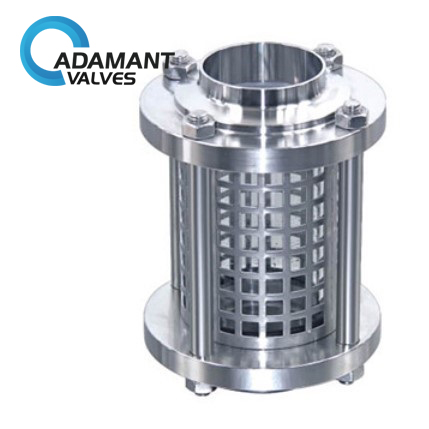

Sanitary Tubular Sight Glass (with stainless steel protective cover)

Size	H	D	D1	Dn
DN10	156	78	34	10
DN15	156	78	34	15
DN20	156	78	34	19
DN25	156	78	50.5	25
DN32	156	78	50.5	31
DN40	160	86	50.5	37
DN50	166	90	64	49
DN65	174	102	91	66
DN80	174	124	106	81
DN100	196	139	119	100
DN125	212	154	144.4	125
DN150	236	185	167	150
DN200	256	215	217.4	200
