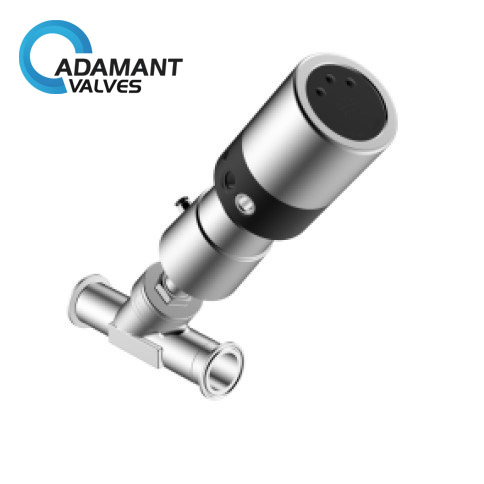

AV-5TA Sanitary Titanium Regulating Angle Seat Valve J03.6

Availability : In stock
Size DN25-DN100
Working temperature -30 to 180℃
Working pressure vacuum to 10 bar
Body material Hastelloy C276/C22 Monel 400,

254SMO N08904 Titanium TA1/TA2

Sealing material PTFE
Connection clamp, thread, weld, flange, DIN SMS RJT ISO
SKU: AV-5TA Category:

Sanitary Titanium Regulating Angle Seat Valve J03.6 Description

Sanitary Titanium Regulating Angle Seat Valve J03.6 is mainly used in the flow control valve. The valves can be used in a vacuum environment. The body is designed according to no dead angle with the surface roughness up to Ra0.4μm. Valve seal adopts embedded design which is widely used in all industries, such as pharmaceutical, food and beverage, brewing, chemical, and other industries. This valve is particularly suitable for steam flow regulating control systems.

Sanitary Titanium Regulating Angle Seat Valve J03.6 Specifications

Size DN25-DN100
Working temperature -30 to 180℃
Working pressure vacuum to 10 bar
Body material Hastelloy C276/C22 Monel 400,

254SMO N08904 Titanium TA1/TA2

Sealing material PTFE
Connection clamp, thread, weld, flange, DIN SMS RJT ISO



Sanitary Titanium Regulating Angle Seat Valve J03.6 Applications

Sanitary Titanium Regulating Angle Seat Valve J03.6 is widely used in all industries, such as pharmaceutical, food and beverage, brewing, chemical, and other industries.
