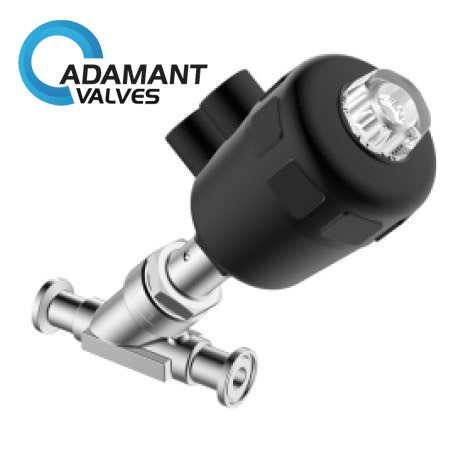

AV-5PA Sanitary Titanium Pneumatic Female Thread Angle Seat Valve J02.4

Availability : In stock
Size DN10~DN80
Working temperature -20 to 120℃
Working pressure 0-2.5Mpa
Body material Hastelloy C276/C22 Monel 400,

254SMO N08904 Titanium TA1/TA2

Sealing material PTFE
Connection Clamp
SKU: AV-5PA Category:

Sanitary Titanium Pneumatic Female Thread Angle Seat Valve J02.4 Description

Sanitary Titanium Pneumatic Female Thread Angle Seat Valve J02.4 is extensively used to frequently start in a short time, with features of response delicacy and exact action. The Angle seat valve maintains the flow rate to save space. It uses a single-acting pneumatic actuator with spring safety to operate the steering angle seat valve. When used, it should be normally open or normally closed.

Sanitary Titanium Pneumatic Female Thread Angle Seat Valve J02.4 Specifications

Size DN10~DN80
Working temperature -20 to 120℃
Working pressure 0-2.5Mpa
Body material Hastelloy C276/C22 Monel 400,

254SMO N08904 Titanium TA1/TA2

Sealing material PTFE
Connection Clamp



Sanitary Titanium Pneumatic Female Thread Angle Seat Valve J02.4 Applications

Sanitary Titanium Pneumatic Female Thread Angle Seat Valve J02.4 is used for neutral gas, automated fluid control industry, foodstuff dairy industry, domestic water, pipeline fluid medium, and so on.
