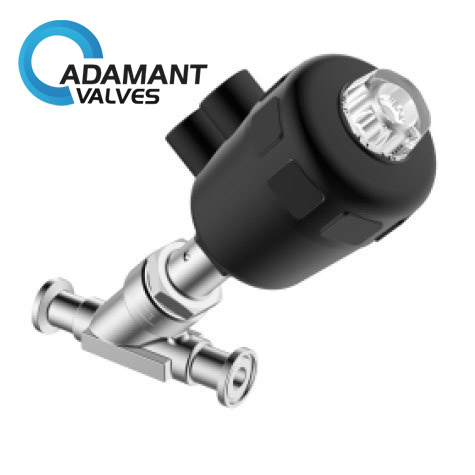

AV-5AJ Sanitary Titanium Pneumatic Clamp Angle Seat Valve J02.3
Availability :
In stock
| Size | DN10~DN80 |
| Working temperature | -20 to 120℃ |
| Working pressure | 0-2.5Mpa |
| Body material | Hastelloy C276/C22 Monel 400,
254SMO N08904 Titanium TA1/TA2 |
| Sealing material | PTFE |
| Connection | Clamp |
Sanitary Titanium Pneumatic Clamp Angle Seat Valve J02.3 Description
Sanitary Titanium Pneumatic Clamp Angle Seat Valve J02.3 is extensively used to frequently start in a short time, with features of response delicacy and exact action.
Sanitary Titanium Pneumatic Clamp Angle Seat Valve J02.3 Specifications
| Size | DN10~DN80 |
| Working temperature | -20 to 120℃ |
| Working pressure | 0-2.5Mpa |
| Body material | Hastelloy C276/C22 Monel 400,
254SMO N08904 Titanium TA1/TA2 |
| Sealing material | PTFE |
| Connection | Clamp |
Sanitary Titanium Pneumatic Clamp Angle Seat Valve J02.3 Applications
Sanitary Titanium Pneumatic Clamp Angle Seat Valve J02.3 is used for neutral gas, automated fluid control industry, foodstuff dairy industry, domestic water, pipeline fluid medium, and so on.
