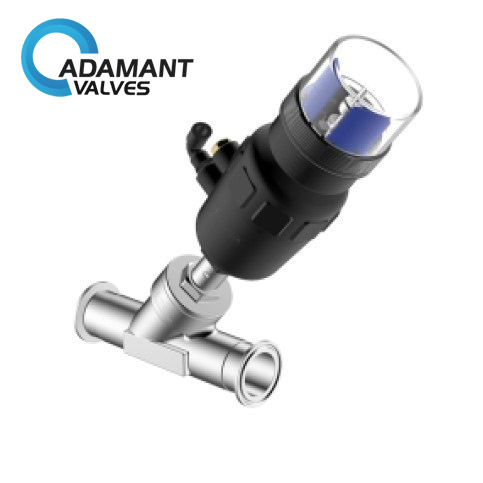

AV-5AR Sanitary Titanium Angle Seat Valve (Responder) J02.5

Availability : In stock
Size DN25-DN100
Working temperature -30 to 180℃
Working pressure vacuum to 10 bar
Body material Hastelloy C276/C22 Monel 400,

254SMO N08904 Titanium TA1/TA2

Sealing material PTFE
Connection clamp, thread, weld, flange, DIN SMS RJT ISO
SKU: AV-5AR Category:

Sanitary Titanium Angle Seat Valve (Responder) J02.5 Description

Sanitary Titanium Angle Seat Valve (Responder) J02.5 is mainly used as the flow control valve. Valve seal adopts embedded design which is widely used in all industries, such as pharmaceutical, food and beverage, brewing, chemical and other industries. This valve is particularly suitable for steam flow regulating control systems.

Sanitary Titanium Angle Seat Valve (Responder) J02.5 Specifications

Size DN25-DN100
Working temperature -30 to 180℃
Working pressure vacuum to 10 bar
Body material Hastelloy C276/C22 Monel 400,

254SMO N08904 Titanium TA1/TA2

Sealing material PTFE
Connection clamp, thread, weld, flange, DIN SMS RJT ISO



Sanitary Titanium Angle Seat Valve (Responder) J02.5 Applications

Sanitary Titanium Angle Seat Valve (Responder) J02.5 is widely used in all industries, such as pharmaceutical, food and beverage, brewing, chemical and other industries.

Related products: AV-5SPA3 SANITARY PNEUMATIC 3-WAY ANGLE SEAT VALVE WITH TRI-CLAMP ENDS

AV-5SPA SANITARY PNEUMATIC PROPORTIONAL CONTROL ANGLE SEAT VALVE WITH THREADED ENDS

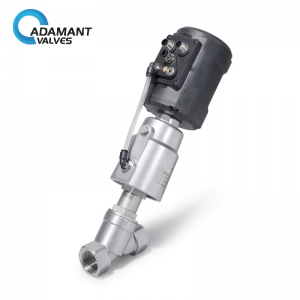

AV-5SEA SANITARY ELECTRIC PROPORTIONAL CONTROL ANGLE SEAT VALVE WITH THREADED ENDS
