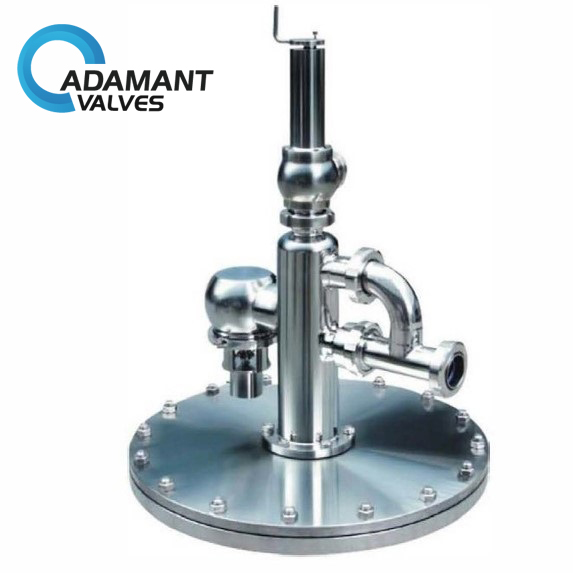

AV-GAZ4 Sanitary Tank-top Assembly Model GAZ-4D

Availability : In stock

Gasket: Silicone/EPDM/NBR/FPM (FDA 177. 2600).

Material: 304 (1. 4301), 316L (1. 4404)

Internal surface: 0.8um-0.4um

Outside surface: Mirror polished, Matte, sand-blasting finished.

Sensitive vacuum set points for precise operation.

Available in 2 types: single/double seat.

Significantly reduced risk of cross-contamination.

SKU: AV-GAZ4 Category: Manual Valves

Sanitary Tank-top Assembly Model GAZ-4D Description

Sanitary Tank-top Assembly Model GAZ-4D is used for minimizing the risk of the implosion of tanks exposed to vacuum. E.g., during emptying, cool rinsing after hot-cleaning (max. 85℃) or caustic cleaning in a CO2 atmosphere. It is suitable for very high-demanding applications in the food, pharmaceutical and biotechnological industries.
