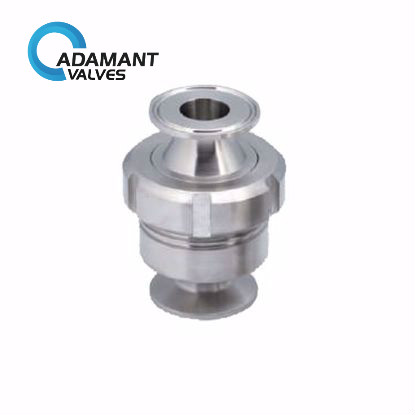

AV-3TC Sanitary Spring Check Valves with Tri-Clamp
Availability :
In stock
Specifications
| Size | 1”, 1.5”, 2”, 2.5”, 3”, 4” |
| Max. working temperature | 140°C |
| Max. working pressure | 10 Bar |
| Body material | 316L/304 |
| Sealing material | VITON, SILICON,EPDM |
| Connection | Welded, thread, clamp |
| Finishing | Ra<0.8μm |
| Standards | ISO/DIN/ASME BPE/3A/BS/GB |
Sanitary Spring Check Valves with Tri-Clamp Description
Sanitary Spring Check Valves with Tri-Clamp is very useful and has been used in industry and our everyday life. Adamant Valves was found in 2002 and has grown into a global sanitary valves manufacturer and valves supplier. As one of the leading valves manufacturers across the world, Adamant Valves provides customers with high-precision Sanitary Spring Check Valves with Tri-Clamp at a very competitive price.
Sanitary Spring Check Valves with Tri-Clamp Specifications
| Size | 1”, 1.5”, 2”, 2.5”, 3”, 4” |
| Max. working temperature | 140°C |
| Max. working pressure | 10 Bar |
| Body material | 316L/304 |
| Sealing material | VITON, SILICON, EPDM |
| Connection | Welded, thread, clamp |
| Finishing | Ra<0.8μm |
| Standards | ISO/DIN/ASME BPE/3A/BS/GB |

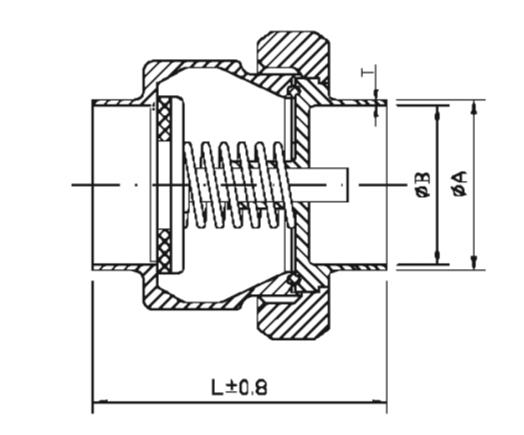

| Size | L | A | B | T |
| 1″ | 69.4 | 25.4 | 22.1 | 1.65 |
| 1.5″ | 68.7 | 38.1 | 34.8 | 1.65 |
| 2″ | 75.7 | 50.8 | 47.5 | 1.65 |
| 2.5″ | 99.8 | 63.5 | 60.2 | 1.65 |
| 3″ | 101.1 | 76.2 | 72.9 | 1.65 |
| 4″ | 126.8 | 101.6 | 97.38 | 2.11 |
Sanitary Spring Check Valves with Tri-Clamp Options
– Connections: Butt-weld, sanitary clamp, flange, thread, etc. (DIN, IDF, SMS, RJT, 3A standard)
– Seals and gaskets: EPDM as default, Silicone or Viton (FPM) are available upon request.
– Pressure range adjustable (by calibrating spring).
Sanitary Spring Check Valves with Tri-Clamp Applications
- Food industries
- Personal care industries
- Pharmaceuticals industries
Be the first to review “AV-3TC Sanitary Spring Check Valves with Tri-Clamp”
Related Products

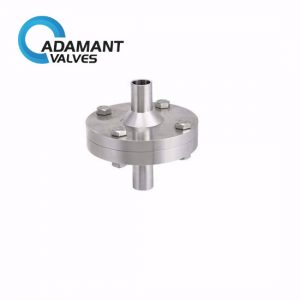

AV-3F Sanitary Flange Connected Check Valves with Welded Ends
