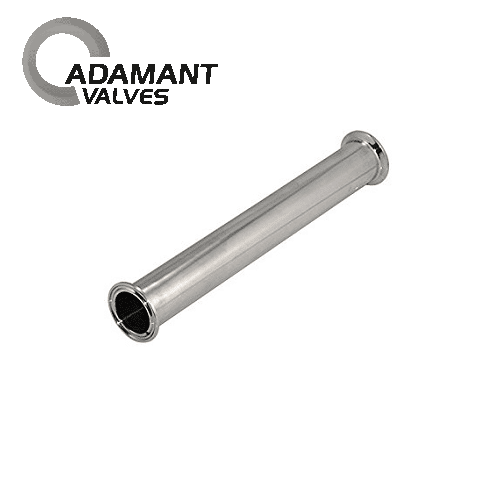

SS-SS Sanitary Spool
Availability :
In stock
Specifications:
- Available in 304 & 316L Stainless Steel
- Surface Finish: 32Ra
Sanitary Spool Description:
When combined with other Tri-Clamp fittings, clamps, and gaskets, sanitary spools can build a process line without the need for on-site welding and fabrication, and installed saving time. Tri-Clamp spool pipes also have the added benefit of being non-permanent than their welded tubing cousins and can be easily disassembled, moved, or reassembled in a different configuration. The versatility and cost savings of a prefabricated spool pipe make them a popular solution for tubing needs.

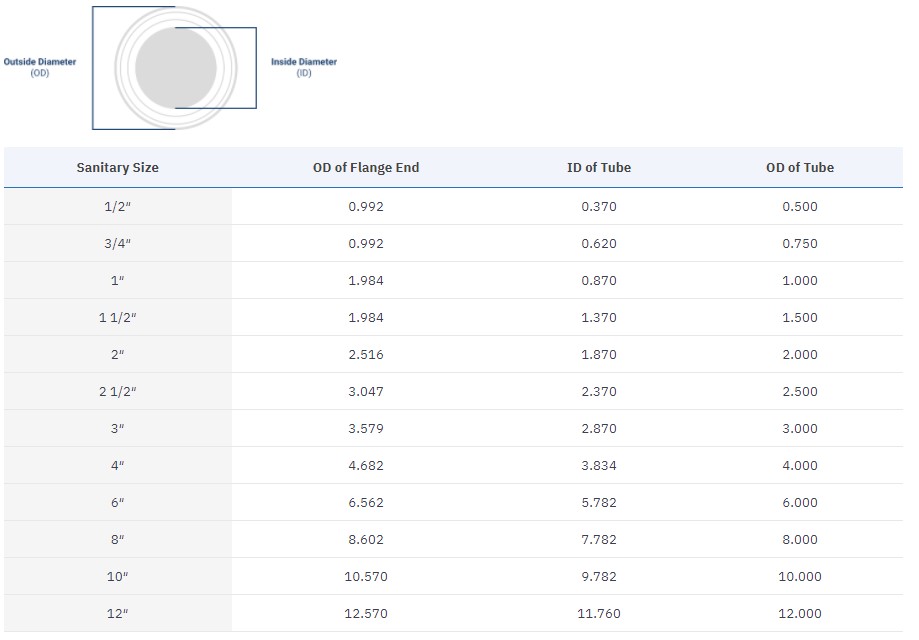

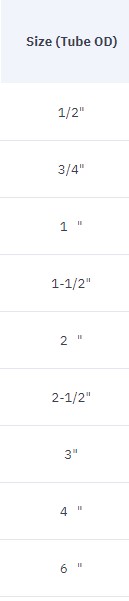

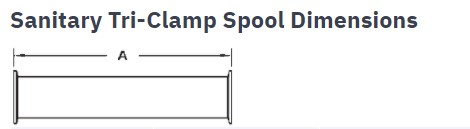

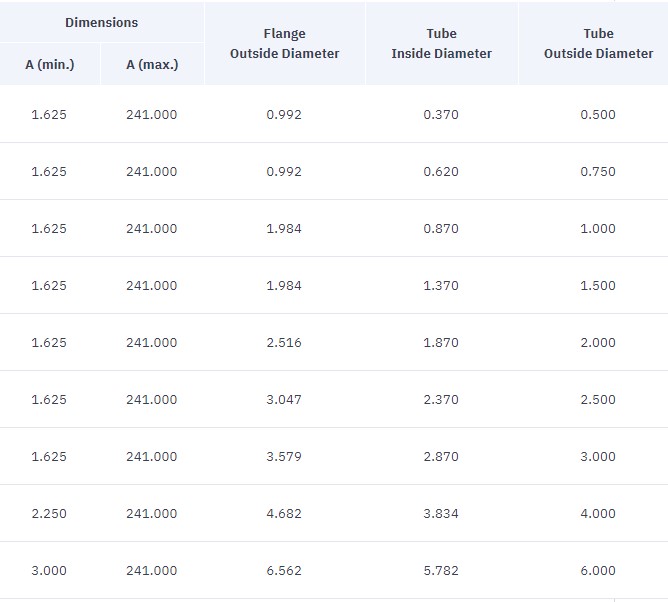

Sanitary Spool Specifications:
- Available in 304 & 316L Stainless Steel
- Surface Finish: 32Ra
Sanitary Spool Applications:
Sanitary Spool is often known as Tri Clam sanitary spool that is used in the distillery, brewery, and/or dairy farm.
