AV-13RJ Sanitary Rotary Jet head
Availability :
In stock
Specifications
| Cleaning radius | Diameter 14m |
| Flow | 4-45 m3 |
| Insert pressure | 4-10 bar |
| Suggest pressure | 6 bar |
| Max temperature | 95 °C |
| Connections | Thread BSP, 1.5”-1”(DN40-DN25) |
| Clamps | DIN/INCH |
| Materials | 316L PTFE |
| Lubrication | Cleaning medium |

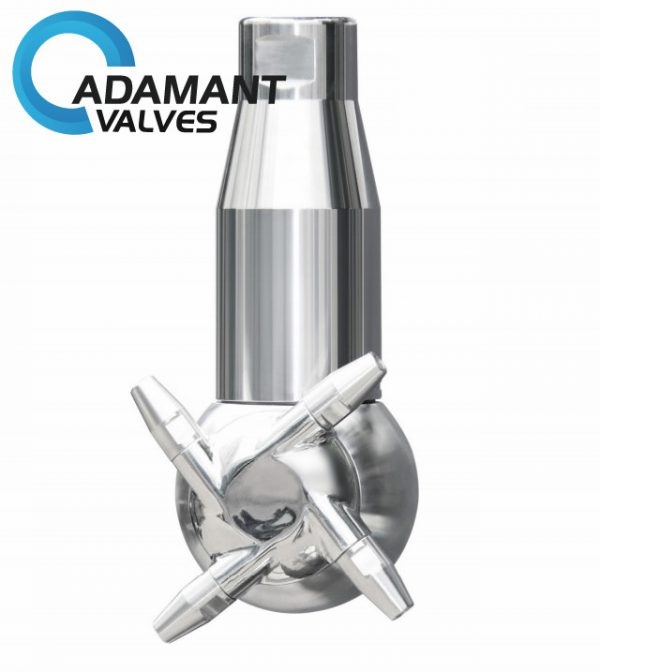

Description of Sanitary Rotary Jet head
Sanitary Rotary jet head is a sanitary cleaner with 360° coverage in a given tank or process container. The rotary jet head is driven by flow liquid through impeller in the pressure. With the flow increase, the length of the jet and the impact on the tank or vessel surface will increase.

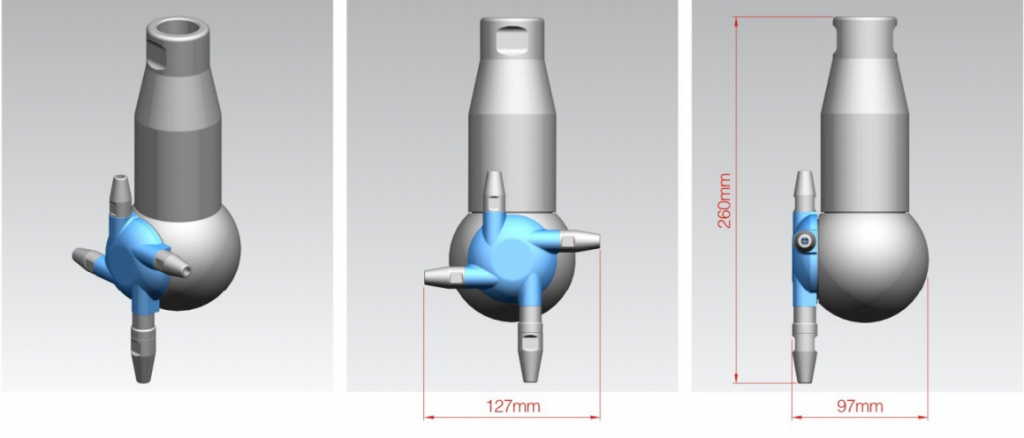

Specifications of Sanitary Rotary Jet head
| Cleaning radius | Diameter 14m |
| Flow | 4-45 m3 |
| Insert pressure | 4-10 bar |
| Suggest pressure | 6 bar |
| Max temperature | 95 °C |
| Connections | Thread BSP, 1.5”-1”(DN40-DN25) |
| Clamps | DIN/INCH |
| Materials | 316L PTFE |
| Lubrication | Cleaning medium |
Applications of Sanitary Rotary Jet head
- Fixed installation CIP system
- Process containers and reactor
- Store tank
- Transport tank equipment
- Fermentation
- Yeast breeding
