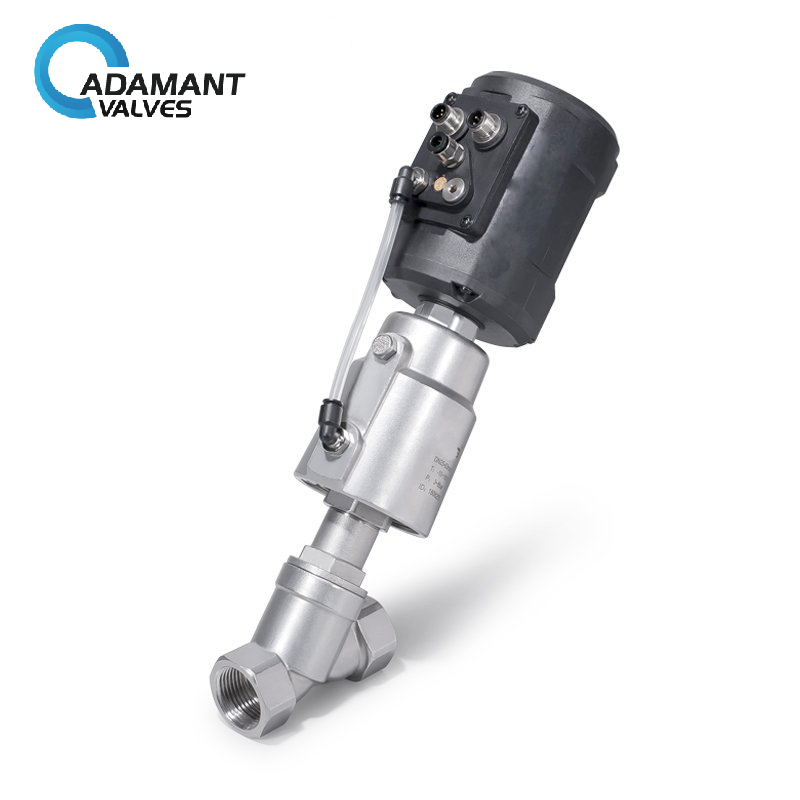

AV-5SPA Sanitary Pneumatic Proportional Control Angle Seat Valve With Threaded Ends

Availability : In stock

 Specifications:

Size DN8-DN80
Medium temperature PTFE(-10 ~ +120°C)
Working temperature 0 ~+60°C
Working pressure 4-7 bar(58-102 psi)
Body Material AISI 316 / AISI 304
Sealing material PTFE
Connection Threaded, welded, tri-clamp and flange
Power consumption <5 W
Leakage class DIN EN 12266 A
Analogue signal output 0/4-20mA, 560Ω max.

0-5/10V, 10mA max.

Sanitary Pneumatic Proportional Control Angle Seat Valve Description:

The valve positioner of the pneumatic proportional control angle seat valve receives a 4-20 mA current signal from the control system and converts it into a gas signal through the processor to control the valve opening. At the same time, the gas signal can be combined with the adjustment cone to achieve precise flow regulation of the valve.

 Sanitary Pneumatic Proportional Control Angle Seat Valve Specifications:

Size DN8-DN80
Medium temperature PTFE(-10 ~ +120°C)
Working temperature 0 ~+60°C
Working pressure 4-7 bar(58-102 psi)
Body Material AISI 316 / AISI 304
Sealing material PTFE
Connection Threaded, welded, tri-clamp and flange
Power consumption <5 W
Leakage class DIN EN 12266 A
Analogue signal output 0/4-20mA, 560Ω max.

0-5/10V, 10mA max.

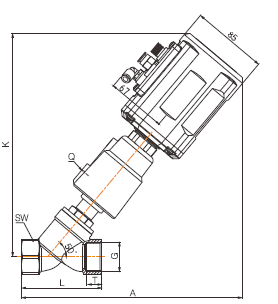

electric proportional control angle seat valve

SIZE ACTUATOR(mm) Q K A L G SW T
DN8 50 1/8″ 240 235 68 1/4″ 27 12
63 1/8″ 253 247
DN10 50 1/8″ 240 235 68 3/8″ 27 12
63 1/8″ 253 247
DN15 50 1/8″ 240 235 68 1/2″ 27 15
63 1/8″ 253 247
DN20 50 1/8″ 247 240 75 3/4″ 32 16
63 1/8″ 260 251
DN25 50 1/8″ 251 250 90 1″ 40 17
63 1/8″ 273 267
DN32 63 1/8″ 285 285 116 1 1/4″ 50 21
90 1/8″ 335 315
DN40 90 1/8″ 335 315 116 1 1/2″ 56 21
DN50 90 1/8″ 344 330 138 2″ 69 22
125AL 1/4″ 402 373
DN65 125AL 1/4″ 432 388 178 2 1/2″ 85 26
DN80 125AL 1/4″ 457 408 210 3″ 100 27

Sanitary Pneumatic Proportional Control Angle Seat Valve Options:

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double acting—air to open, air to close

available actuators

Sanitary Pneumatic Proportional Control Angle Seat Valve Applications:

  • Foods
  • Beverage
  • Water treatment plant
  • Fluid mixing plant
  • Vacuum technology
