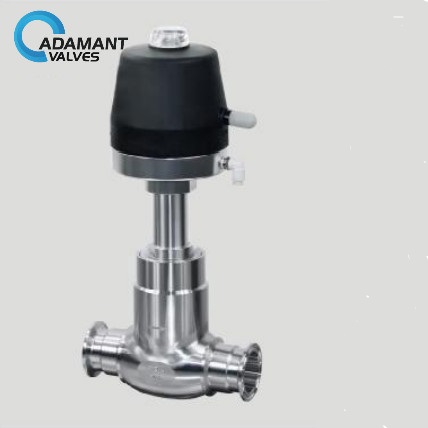

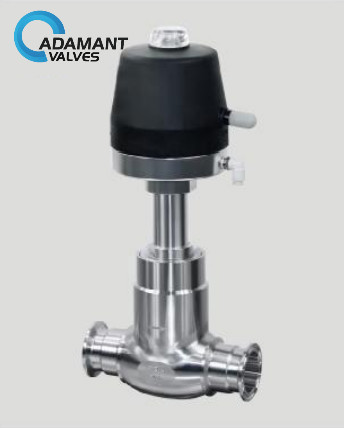

AV-21PG Sanitary Pneumatic 2-way Globe Valve With Tri-clamp End

Sanitary Pneumatic 2-way Globe Valve Description:

A globe valve is a linear motion valve used to stop, start, and regulate the fluid flow. The globe valve disk can be removed entirely from the flow path, or it can completely close the flow path. During the opening and closing of the valve, the disc moves perpendicularly to the seat.

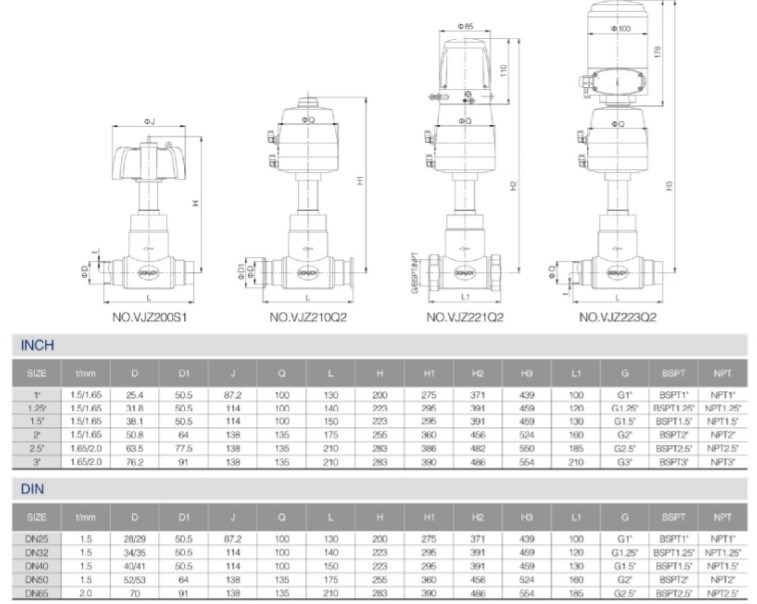

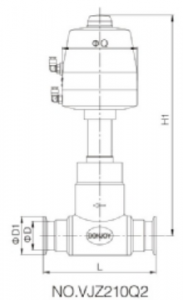

Sanitary Pneumatic 2-way Globe Valve Specifications

	D	D1	Q	L	H1
	25.4	50.5	100	130	275
	31.8	50.5	100	140	295
	38.1	50.5	100	150	295
	50.8	64	135	175	360
	63.5	77.5	135	210	386
	76.2	91	135	210	390

Sanitary Pneumatic 2-way Globe Valve Options:

End connection can be butt-welded, sanitary tri-clamp, threaded, or others upon request.

The valve body can be three-way: T type or L type ball core for choose from

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

• NC operated: normally closed (fail closed)—air to open, spring to close
• NO operated: normally open (fail open)—air to close, spring to open
• AA operated: double-acting—air to open, air to close

Sanitary Pneumatic 2-way Globe Valve Applications

The stop valve is a general switch in the automatic control system. It is widely used in printing, dyeing, bleaching, food, washing, chemical, water treatment and many other automated machinery and equipment. It featured with water hammer protection, noise-free, reliable sealing performance.
