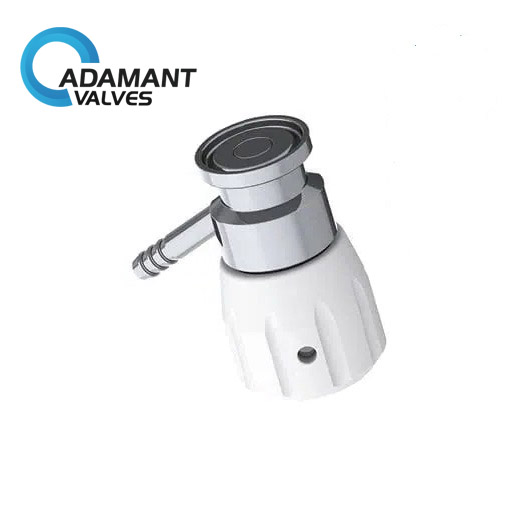

AV-7P Sanitary Piston Valve

Availability : In stock

Materials: Stainless Steel 304/316L,

Seat Material: Viton, silicon, PTFE

Max Working Pressure: 12 bar (174 psi)

Special characteristics:

Side pipe sanitary sampling valves are designed for sampling of liquids on pharmaceutical, chemical, F&B and cosmetics products.
O-Ring closing system.

Sanitary Piston Valve Description

Characteristics:

Side pipe sanitary sampling valves are designed for sampling liquids on pharmaceutical, chemical, F&B, and cosmetics products.

O-Ring closing system.

Documentation:

Laser marking for traceability and validation processes. Material 3.1 certificates, FDA or USP, internal surface finishing check as standard.

Int. finishing: Ra ≤ 0,4 µm

Ext. finishing: Ra ≤ 0,8 µm Mirror Polished

Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)

Installation: Horizontal installation recommended.

Sanitary Piston Valve is suitable for chemical, sanitary, pharmaceutical applications.
