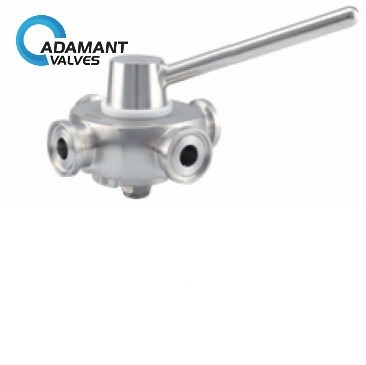

AV-21MG2 Sanitary Manual 4-way 2-port Plug Valve with Tri-clamp
Specifications:
Size | 1/4”-1” |
Working temperature | -10°C ~ 150°C |
Working pressure | 0-10 bar |
Body material | 316L |
Sealing material | PTFE |
Connection | Tri-Clamp |
Finishing | Ra≤1.6 μm (outside surface)
Ra≤0.8 μm (inside surface) |
Sanitary Manual 4-way 2-port Plug Valve Description
A plug valve is a closing piece or a plunger-shaped rotary valve. By rotating 90 degrees, the passage opening on the valve plug is communicated with or separated from the passage opening on the valve body to open or close. 4-Way Plug Valves are designed for throttling and diverting applications. The transfer style plug can be arranged to divert flow into a variety of flow combinations.
Sanitary Manual 4-way 2-port Plug Valve Specifications
Size | 1/4”-1” |
Working temperature | -10°C ~ 150°C |
Working pressure | 0-10 bar |
Body material | 316L |
Sealing material | PTFE |
Connection | Tri-Clamp |
Finishing | Ra≤1.6 μm (outside surface)
Ra≤0.8 μm (inside surface) |

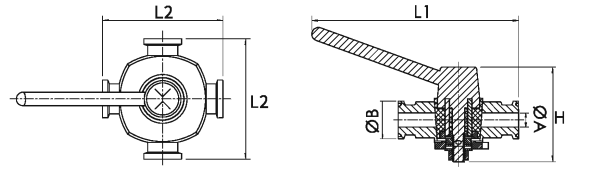

A | B | H | L1 | L2 | |
4.57 | 25 | 63 | 137.4 | 80 | |
7.75 | 25 | 63 | 137.4 | 80 | |
9.4 | 25 | 63 | 137.4 | 80 | |
22.1 | 50.4 | 107 | 224 | 150 |
Sanitary Manual 4-way 2-port Plug Valve Options
End connection can be butt-welded, sanitary tri-clamp, threaded, or others upon request.
The valve body can be three-way: T type or L type ball core for choose from
Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.
End connection can be butt-welded, sanitary tri-clamp, threaded, or others upon request.
The valve body can be three-way: T type or L type ball core for choose from
Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
Sanitary Manual 4-way 2-port Plug Valve Applications
4-way plug valves are mainly used in chromatography systems for manual and quick replacement of sample and buffer tubing.
