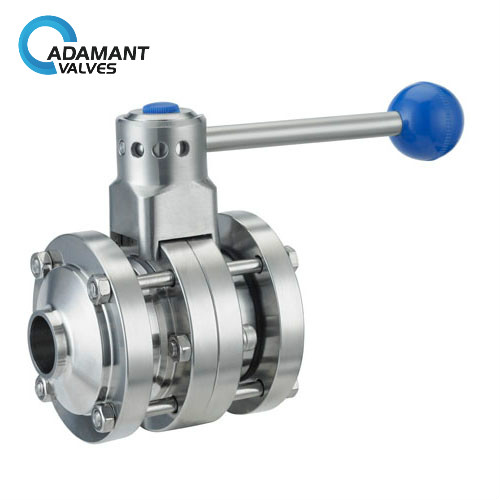

AV-1MBC3 Sanitary Manual 3-Pieces Butterfly Valve With Welded Ends

Availability : In stock

Specifications:

Size	3/4”-6”
Working temperature	-10°C – +95°C
Working pressure	10 bar (145psi)
Body material	304, 316L
Sealing material	VMQ, FPM, EPDM
Finish	< 0.4μm
Connection	Welded
Standards	ISO, DIN, IDF, SMS, 3A

Sanitary Manual 3-Pieces Butterfly Valve Description

Sanitary Manual 3-Pieces Butterfly Valve with Welded Ends is a sanitary manual butterfly valve which is wildly used in foods, beverage, and medicines. Adamant also has the ability to provides both intelligent control and stainless steel pneumatic actuator with multi-connected air actuated butterfly valve of tri-clamp, butt-weld, male/female threaded, flanged to 3A, DIN, SMS, ISO, IDF, etc.

Sanitary Manual 3-Pieces Butterfly Valve Specifications

Size	3/4”-6”
Working temperature	-10°C – +95°C
Working pressure	10 bar (145psi)
Body material	304, 316L
Sealing material	VMQ, FPM, EPDM
Finish	< 0.4μm
Connection	Welded
Standards	ISO, DIN, IDF, SMS, 3A

Size	A	B	K×K	D	L	T
3/4″	78	19.05	10×10	100	136	1.65
1″	78	25.4	10×10	100	136	1.65
1 1/4″	78	31.8	10×10	100	136	1.65
1 1/2″	86	38.1	10×10	100	136	1.65
2″	100	50.8	10×10	102	136	1.65
2 1/2″	115	63.5	10×10	106	136	1.65
3″	128	76.2	10×10	108	163	1.65
4″	154	101.6	10×10	114	163	2.1
5″	186	127	14×14	140	185	2.1
6″	225	152.4	14×14	160	185	2.8

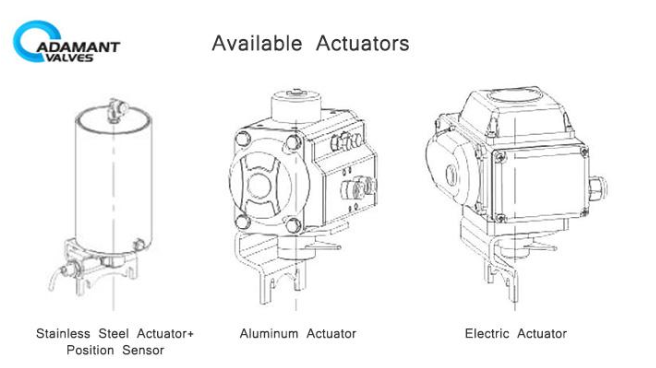

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

NC operated: normally closed (fail closed)—air to open, spring to close
NO operated: normally open (fail open)—air to close, spring to open
AA operated: double acting—air to open, air to close
