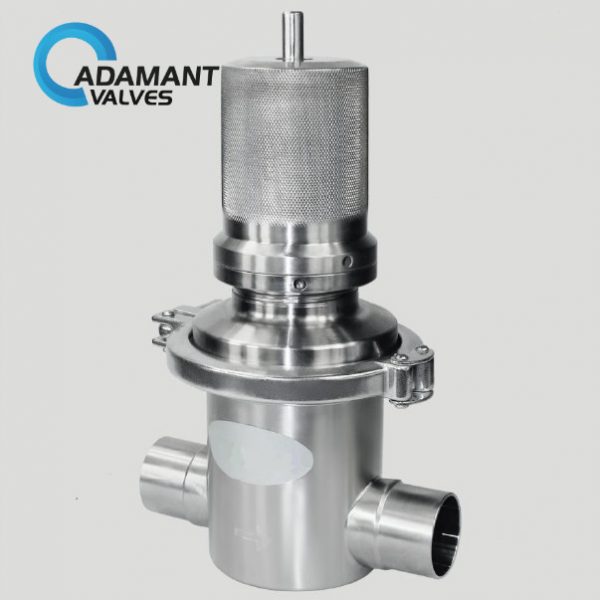

AV-9ST Sanitary High Purity S-Type Pressure Reducing Valve
Availability :
In stock
Specifications:
| Size | 1”-3”, DN25-DN80 |
| Normal-pressure | PN 2.5-10 |
| Inlet pressure | 8 bar |
| Outlet pressure | 0.3-5 bar |
| Kv | 4-70 m3/h |
| Max. temperature | 180 °C |
| Medium | Steam, gas, liquid |
| Connection | Clamp, screw thread, flange, welded |
Sanitary High Purity S-Type Pressure Reducing Valve Description:
Sanitary High Purity S-Type Pressure Reducing Valve has been widely used in industry and our everyday life. Founded in 2002, Adamant Valves is a trustworthy Sanitary High Purity S-Type Pressure Reducing Valve manufacturer and supplier and provides customers with high-precision Sanitary High Purity S-Type Pressure Reducing Valve at a very competitive price.
Sanitary High Purity S-Type Pressure Reducing Valve Specifications
| Size | 1”-3”, DN25-DN80 |
| Normal-pressure | PN 2.5-10 |
| Inlet pressure | 8 bar |
| Outlet pressure | 0.3-5 bar |
| Kv | 4-70 m3/h |
| Max. temperature | 180 °C |
| Medium | Steam, gas, liquid |
| Connection | Clamp, screw thread, flange, welded |
| SIZE | D | Dn | D1 | H | L |
| 1″ | φ25.4 | φ22.4 | φ66 | 265 | 152 |
| 1.5″ | φ38.1 | φ35.1 | φ66 | 265 | 152 |
| 2″ | φ50.8 | φ47.8 | φ66 | 310 | 178 |
Sanitary High Purity S-Type Pressure Reducing Valve Applications:
Sanitary High Purity S-Type Pressure Reducing Valve can be applied in the following fields:
Water supply system
Food processing industries
Pharmaceutical industries
Be the first to review “AV-9ST Sanitary High Purity S-Type Pressure Reducing Valve”
Related Products
AV-9HP Sanitary High Purity Pressure Reducing Valve
Media: steam, liquid, gas Size: 1"-3", DN25-DN80 Max Temp. : 180℃ Nominal pressure: PN2.5-10 Inlet pressure: 8bar Outlet pressure: 0.3-5bar KV Value: 4-70m3/h Connection mode: Clamps, welding, thread, Flange

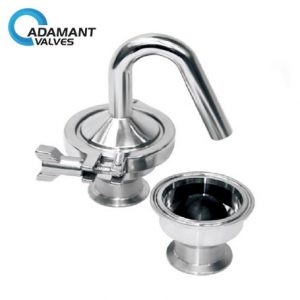

AV-9VB Sanitary Vacuum Breaker
