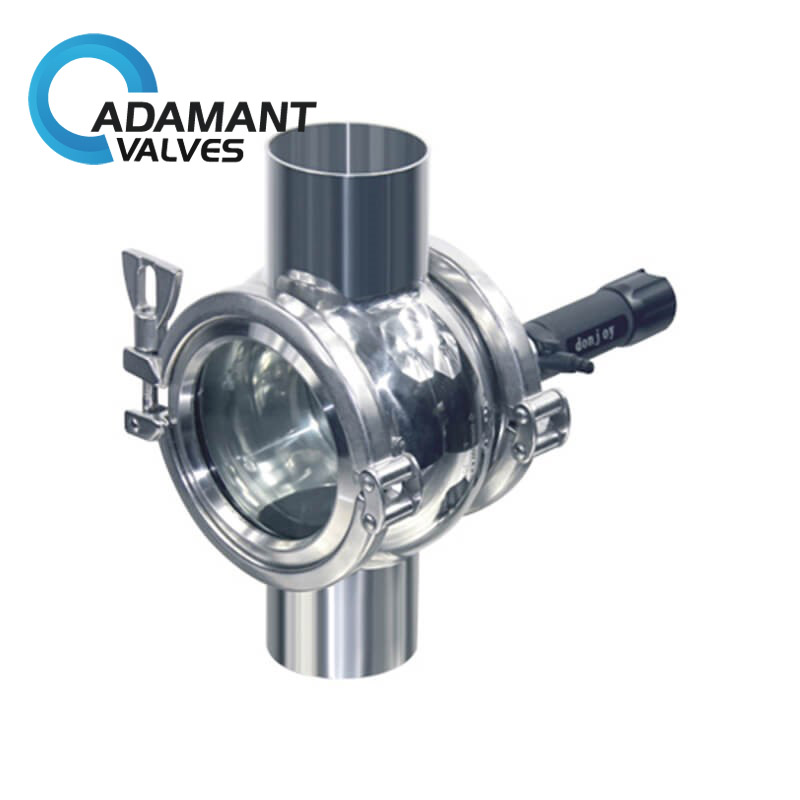

AV-24F Sanitary Four-Way Sight Glass (with Rechargeable light)
Availability :
In stock
Connection Size | 1″ to 4″(DN25- DN100) |
Body Material | AISI 304 or 316L, (EN1.4301/EN1.4404). |
Glass Material | borosilicate |
Temperature | -10°C to 150°C It depends on the seal |
Max pressure | 145psi (10bar) |
Seal | EPDM standard FDA approved |
Certification | US FDA Certification |
Features
- Non-retention, no dead angles.
- With high light, white cold light source.
- Work temperature -10 to 150-celsius degree for basic type
- Waterproof
- Explosion-proof
Sanitary Four-way Sight Glass Description
AV-24F Sanitary Four-Way Sight Glass (with Rechargeable light) is constructed from hygienic stainless steel, borosilicate glass for work temperatures up to 130-celsius degrees, resistant pressure up to 10bar, with FDA-approved gasket, full bore hygienic design, sight glass commonly used in the piping system, tank or vessel, food processing, dairy, daily chemical, pharmaceutical industries.
Sanitary Four-way Sight Glass Specifications
Connection Size | 1″ to 4″(DN25- DN100) |
Body Material | AISI 304 or 316L, (EN1.4301/EN1.4404). |
Glass Material | borosilicate |
Temperature | -10°C to 150°C It depends on the seal |
Max pressure | 145psi (10bar) |
Seal | EPDM standard FDA approved |
Certification | US FDA Certification |

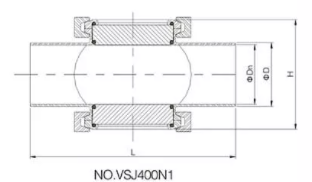

Inch Four-way Glass | ||||
Size | D | Dn | H | L |
1 1⁄2 “ | 38.1 | 35.1 | 75.1 | 165 |
2” | 50.8 | 47.8 | 87.8 | 165 |
2 1⁄2 “ | 63.5 | 59.5 | 101.5 | 205 |
3” | 76.2 | 72.2 | 114.2 | 230 |
4” | 101.6 | 97.6 | 141.6 | 300 |
Sanitary Four-way Sight Glass Applications
Commonly used in the piping system, tank or vessel, food processing, dairy, daily chemical, and pharmaceutical industries.
Related products: AV-12 Sanitary Sight Glasses, AV-13SG Sanitary Sight Glass Tri-Clamp Spool, AV-13M Sanitary Manhole
