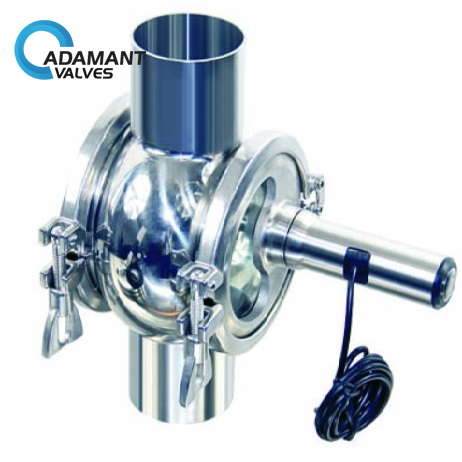

AV-29FL Sanitary Four-way Sight Glass with Stainless Steel Light
Availability :
In stock
Materials: AISI 304(1.4301) AISI 316L(1.4404)
Size: 1″-4″to DN25-DN100
Operating Temp. : -10 to 130℃
Connections: thread, clamps, welding, DIN, SMS, IDF
Related products: AV-12 Sanitary Sight Glasses, AV-24U Sanitary Union Sight Glass, AV-24F Sanitary Four-Way Sight Glass, SS-SVP Sanitary View Port
Sanitary Four-way Sight Glass with Stainless Steel Light Description
Sanitary Four-way Sight Glass with Stainless Steel Light is comprised of stainless steel frame, tempered glass, and lamp. Through it, operators can observe the flowing of the media clearly and precisely in the fields of food cosmetics, pharmaceutical, and fine chemicals industries.
Sanitary Four-way Sight Glass with Stainless Steel Light Specification
| Size | D | Dn | H | L |
| DN40 | 40 | 37 | 75.1 | 165 |
| DN50 | 52 | 49 | 87.8 | 165 |
| DN65 | 70 | 66 | 108 | 218 |
| DN80 | 85 | 81 | 123 | 250 |
| DN100 | 104 | 100 | 141.6 | 300 |
Sanitary Four-way Sight Glass with Stainless Steel Light Function Options
- Wireless power supply, one charging can use 2-3 months (Depending on the frequency)
- Cable power supply AC110V-220V， one charging can use 2-3 months (Depending on the frequency)
- All stainless steel mirror lamp DC24V power supply
- No retention, zero dead angles, high light, white cold light source, waterproof, explosion-proof
Sanitary Four-way Sight Glass with Stainless Steel Light Applications
Sanitary Four-way Sight Glass with Stainless Steel Light is used in the fields of food cosmetics, pharmaceutical, and fine chemicals industries.
