SS-SFWN Sanitary Flange Weld Neck
Availability :
In stock
Specifications:

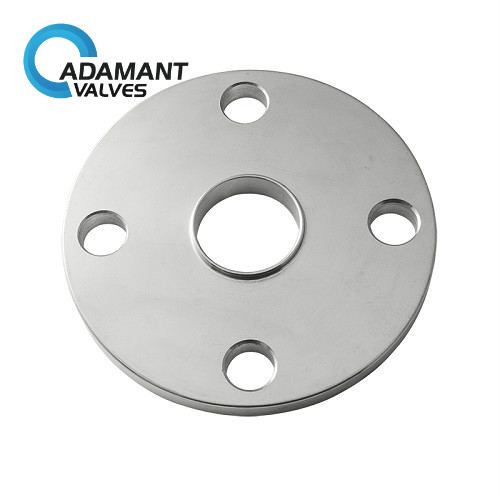

Sanitary Flange Weld Neck Description:
Sanitary Flange Weld Neck connects pump flange to permanent weld for permanent, sanitary connection in process lines height of 1/2″ and is available in both 304 and 316L stainless steel alloys. This product comes rated with a 150-pound bolting pattern. Configurations are available to accommodate tube sizes ranging from 1″ in diameter up to 8″.

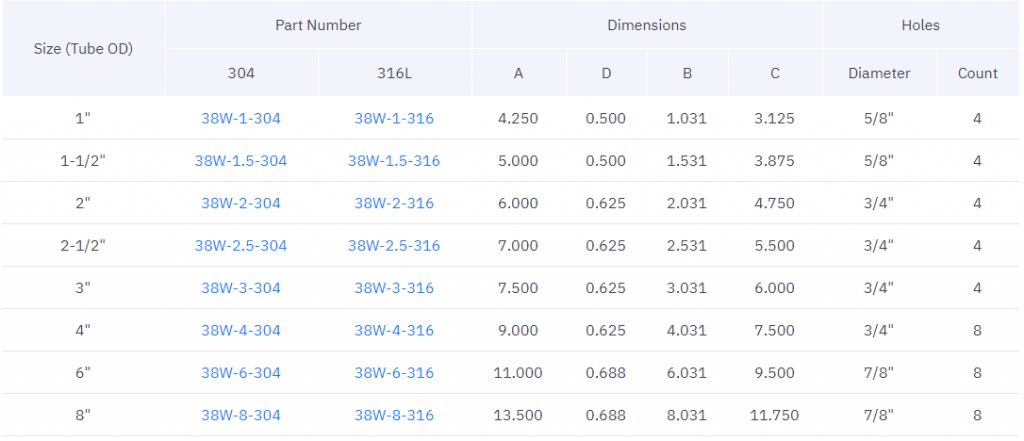

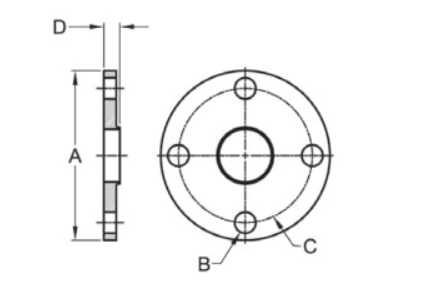

Sanitary Flange Weld Neck Specifications:
Sanitary Flange Weld Neck Applications:
Sanitary Flange Weld Neck is joined to a piping system by butt welding. It used to block the end of a pipe system or valve. Our flange experts can help identify which flange is right for your application. Turbulence and erosion are reduced due to the matching size of the pipe and flange.
Be the first to review “SS-SFWN Sanitary Flange Weld Neck”
Related Products

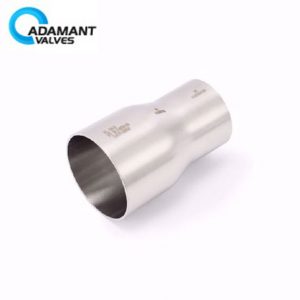

SS-ATWC Automatic Tube Weld Concentric Reducer
