SS-SFA Sanitary Ferrules and Adapters

Sanitary Fittings include sanitary elbows, sanitary tees, sanitary cross, sanitary clamps, sanitary ferrules, sanitary adapters, sanitary reducers, sanitary flanges, sanitary end caps and sanitary pipe holders.
Sanitary clamp fittings are with sanitary clamp ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

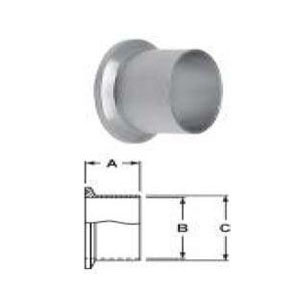

SS14WMP– Short Welding Ferrule
Tube OD (Size)	A	B	Part Number 304	Part Number 316L
1/2″	0.500	0.370	SS14WMP-0.5-304	SS14WMP-0.5-316
3/4″	0.500	0.620	SS14WMP-0.75-304	SS14WMP-0.75-316
1″	0.500	0.870	SS14WMP-1-304	SS14WMP-1-316
1.5″	0.500	1.370	SS14WMP-1.5-304	SS14WMP-1.5-316
2″	0.500	1.870	SS14WMP-2-304	SS14WMP-2-316
2.5″	0.500	2.370	SS14WMP-2.5-304	SS14WMP-2.5-316
3″	0.500	2.870	SS14WMP-3-304	SS14WMP-3-316
4″	0.625	3.834	SS14WMP-4-304	SS14WMP-4-316
6″	0.875	5.782	SS14WMP-6-304	SS14WMP-6-316
8″	0.875	7.782	SS14WMP-8-304	SS14WMP-8-316
10″	0.875	9.782	SS14WMP-10-304	SS14WMP-10-316
12″	0.875	11.76	SS14WMP-12-304	SS14WMP-12-316

SSL14AM7– Long Buttweld Ferrule
Tube OD (Size)	A	B	Part Number 304	Part Number 316L
1/2″	1.125	0.370	SSL14AM7-0.5-304	SSL14AM7-0.5-316
3/4″	1.125	0.620	SSL14AM7-0.75-304	SSL14AM7-0.75-316
1″	1.125	0.870	SSL14AM7-1-304	SSL14AM7-1-316
1.5″	1.125	1.370	SSL14AM7-1.5-304	SSL14AM7-1.5-316
2″	1.125	1.870	SSL14AM7-2-304	SSL14AM7-2-316
2.5″	1.125	2.370	SSL14AM7-2.5-304	SSL14AM7-2.5-316
3″	1.125	2.870	SSL14AM7-3-304	SSL14AM7-3-316
4″	1.125	3.834	SSL14AM7-4-304	SSL14AM7-4-316
6″	1.500	5.782	SSL14AM7-6-304	SSL14AM7-6-316
8″	1.500	7.782	SSL14AM7-8-304	SSL14AM7-8-316
10″	1.750	9.782	SSL14AM7-10-304	SSL14AM7-10-316
12″	1.750	11.76	SSL14AM7-12-304	SSL14AM7-12-316

SS14RMP– Roll-On Expanding Ferrules
Tube OD (Size)	A	B	Part Number 304	Part Number 316L
1″	0.750	1.005	SS14RMP-1-304	SS14RMP-1-316
1.5″	1.125	1.505	SS14RMP-1.5-304	SS14RMP-1.5-316
2″	1.312	2.005	SS14RMP-2-304	SS14RMP-2-316
2.5″	1.375	2.505	SS14RMP-2.5-304	SS14RMP-2.5-316
3″	1.437	3.005	SS14RMP-3-304	SS14RMP-3-316
4″	1.500	4.005	SS14RMP-4-304	SS14RMP-4-316
6″	2.000	6.005	SS14RMP-6-304	SS14RMP-6-316

SS14MPHR– Clamp Rubber Hose Adapters
Tube OD (Size)	A	B	Part Number 304	Part Number 316L
1/2″ x 1/8″	1.250	0.125	SS14MPHR-1/2 x 1/8-304	SS14MPHR- 1/2 – 1/8- 316
1/2″ x 1/4″	1.500	0.250	SS14MPHR-1/2 x 1/4-304	SS14MPHR- 1/2 – 1/4- 316
1/2″ x 3/8″	1.500	0.375	SS14MPHR-1/2x 3/8-304	SS14MPHR- 1/2 – 3/8- 316
1/2″ x 1/2″	1.500	0.500	SS14MPHR-1/2 x 1/2-304	SS14MPHR- 1/2 – 316
1/2″ x 3/4″	1.500	0.750	SS14MPHR-1/2x 3/4-304	SS14MPHR- 1/2 – 3/4- 316
3/4″ x 1/8″	1.500	0.125	SS14MPHR-3/4 x 1/8-304	SS14MPHR- 3/4 – 1/8- 316
3/4″ x 1/4″	1.500	0.250	SS14MPHR-3/4 x 1/4-304	SS14MPHR- 3/4 – 1/4- 316
3/4″ x 3/8″	1.500	0.375	SS14MPHR-3/4 x 3/8-304	SS14MPHR- 3/4 – 3/8- 316
3/4″ x 1/2″	1.500	0.500	SS14MPHR-3/4 x 1/2-304	SS14MPHR- 3/4 – 1/2- 316
3/4″ x 3/4″	1.500	0.750	SS14MPHR-3/4 x 3/4-304	SS14MPHR- 3/4 – 316
1″ x 1″	1.688	1.000	SS14MPHR-1 x 1-304	SS14MPHR-1-316
1″ x 3/8″	1.500	0.375	SS14MPHR-1 x 3/8-304	SS14MPHR-1 x 3/8-316
1″ x 1/2″	1.500	0.500	SS14MPHR-1 x 1/2-304	SS14MPHR-1 x 1/2-316
1″ x 3/4″	1.688	0.750	SS14MPHR-1 x 3/4-304	SS14MPHR-1 x 3/4-316
1.5″ x 1/8″	1.500	0.125	SS14MPHR-1.5 x 1/8-304	SS14MPHR-1.5 x 1/8-316
1.5″ x 1/4″	1.500	0.250	SS14MPHR-1.5 x 1/4-304	SS14MPHR-1.5 x 1/4-316
1.5″ x 3/8″	1.500	0.375	SS14MPHR-1.5 x 3/8-304	SS14MPHR-1.5 x 3/8-316
1.5″ x 1/2″	1.500	0.500	SS14MPHR-1.5 x 1/2-304	SS14MPHR-1.5 x 1/2-316
1.5″ x 3/4″	1.500	0.750	SS14MPHR-1.5 x 3/4-304	SS14MPHR-1.5 x 3/4-316
1.5″ x 1″	1.688	1.000	SS14MPHR-1.5 x 1-304	SS14MPHR-1.5 x 1-316
1.5″ x 1.5″	1.688	1.500	SS14MPHR-1.5-304	SS14MPHR-1.5-316
2″ x 1.5″	2.312	1.500	SS14MPHR-2 x 1.5-304	SS14MPHR-2 x 1.5-316
2″ x 2″	2.313	2.000	SS14MPHR-2-304	SS14MPHR-2-316
2.5″ x 2.5″	2.344	2.500	SS14MPHR-2.5-304	SS14MPHR-2.5-316
3″ x 3″	3.094	3.000	SS14MPHR-3-304	SS14MPHR-3-316
4″ x 4″	3.406	4.000	SS14MPHR-4-304	SS14MPHR-4-316
6″ x 6″	3.406	6.000	SS14MPHR-6-304	SS14MPHR-6-316
8″ x 8″	3.406	8.000	SS14MPHR-8-304	SS14MPHR-8-316

SS14MPHRL– Long Clamp Hose Barb Adapters
Tube OD (Size)	A	B	Part Number 304
1″	3.500	1.000	SS14MPHRL-1-304
1.5″	5.000	1.500	SS14MPHRL-1.5-304
2″	5.000	2.000	SS14MPHRL-2-304
2.5″	5.500	2.500	SS14MPHRL-2.5-304
3″	5.500	3.000	SS14MPHRL-3-304
4″	5.500	4.000	SS14MPHRL-4-304

SS14MPHT– Clamp Tygon Hose Adapters
Tube OD (Size)	A	B	Part Number 304	Part Number 316L
1/2″	4.000	0.370	SS14MPHT-0.5-304	SS14MPHT-0.5-316
3/4″	4.000	0.620	SS14MPHT-0.75-304	SS14MPHT-0.75-316
1″	4.500	0.870	SS14MPHT-1-304	SS14MPHT-1-316
1.5″	4.500	1.370	SS14MPHT-1.5-304	SS14MPHT-1.5-316
2″	4.500	1.870	SS14MPHT-2-304	SS14MPHT-2-316
2.5″	4.500	2.370	SS14MPHT-2.5-304	SS14MPHT-2.5-316
3″	4.500	2.870	SS14MPHT-3-304	SS14MPHT-3-316
4″	4.625	3.834	SS14MPHT-4-304	SS14MPHT-4-316
6″	6.000	5.782	SS14MPHT-6-304	SS14MPHT-6-316

SS14WLMP– Light Tank Ferrule
Tube OD (Size)	A	B	Part Number 304	Part Number 316L
1″	3.000	0.870	SSL14WLMP-1-304	SSL14WLMP-1-316L
1.5″	3.000	1.320	SSL14WLMP-1.5-304	SSL14WLMP-1.5-316L
2″	3.000	1.870	SSL14WLMP-2-304	SSL14WLMP-2-316L
2.5″	3.000	2.370	SSL14WLMP-2.5-304	SSL14WLMP-2.5-316L
3″	4.000	2.870	SSL14WLMP-3-304	SSL14WLMP-3-316L
4″	4.000	3.834	SSL14WLMP-4-304	SSL14WLMP-4-316L
6″	6.000	5.782	SSL14WLMP-6-304	SSL14WLMP-6-316L
8″	6.000	7.760

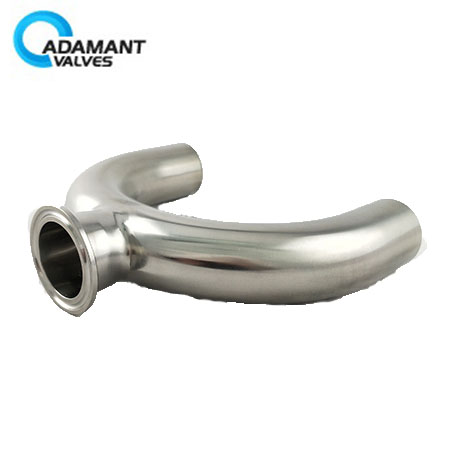

3 Way U Shape Sanitary Ferrule Pipe Fittings
Pipe OD	Ferrule Size	Fits Tri-clamp	Part Number 304	Part Number 316L
19 mm	50.5 mm	1.5″	USF-019-304	USF-019-316L
25 mm	50.5 mm	1.5″	USF-025-304	USF-025-316L
32 mm	50.5 mm	1.5″	USF-032-304	USF-032-316L
38 mm	50.5 mm	1.5″	USF-038-304	USF-038-316L
45 mm	64 mm	2″	USF-045-304	USF-045-316L
51 mm	64 mm	2″	USF-051-304	USF-051-316L
57 mm	77 mm	2.5″	USF-057-304	USF-057-316L
