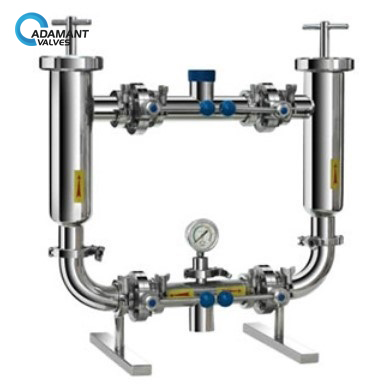

AV-29DF Sanitary Duplex filter (Angle Type)

Availability : In stock

Filter Body Material: AISI 316L, AISI 304

Gasket: EPDM FDA 177.2600

Size: DN 25-DN150/1″-6″

Operating Temp. : -10 to 120℃

Max. working pressure: 10bar 145PSI

Hole Dia.: 0.5mm to 2.0mm

Mesh size: 30Grits to 300Grits

Related products: Sanitary Angle filter, Sanitary Y type filter, AV-28MF Magnetic Filter, AV-14 Sanitary Filters

SKU: AV-29DF Category:

Sanitary Duplex filter Description

Sanitary Duplex filter apply to purify solids that cannot be seen with the naked eye, such as milk, sugar, soft drinks, and other liquid in the barrel. Two filters are used interchangeably. There’s no need to stop it to replace or wash the filter. It is suitable for continuous production.

Sanitary Duplex filter Specification

sanitary duplex filter angle type

Size Dn D L L1 L2 L3 H1 H2
1.5” 38 85 510 190 70 190 369 362
2” 51 85 532 200 76 200 369 362
2.5” 63.5 102 605 218 80 218 505 529
3” 76 114 632 210 84 210 523 522
4” 101.6 154 799 337 104 254 650 693

Sanitary Duplex filter Applications

Sanitary Duplex filters apply to purify solids that cannot be seen with the naked eye, such as milk, sugar, soft drinks, and other liquid in the barrel. It is suitable for continuous production.
