SS-SCE Sanitary Clamped Elbows
Sanitary clamp fittings are with sanitary clamp ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.
Reference Price: $60 - $453
Sanitary Fittings include sanitary elbows, sanitary tees, sanitary cross, sanitary clamps, sanitary ferrules, sanitary adapters, sanitary reducers, sanitary flanges, sanitary end caps and sanitary pipe holders.
Sanitary clamp fittings are with sanitary clamp ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

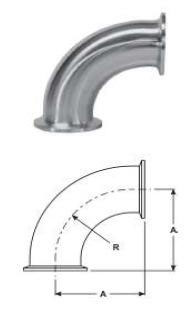

SS 2CMP—- 90° Clamp Elbows, Polish ID/OD |
||||||
Tube OD (Size) |
A | R | Part Number 304 |
Part Number 316L |
||
1/2″ | 1.625 | 1.125 | SS2CMP-0.5-304 | SS2CMP-0.5-316 | ||
3/4″ | 1.625 | 1.125 | SS2CMP-0.75-304 | SS2CMP-0.75-316 | ||
1″ | 2.000 | 1.500 | SS2CMP-1-304 | SS2CMP-1-316 | ||
1.5″ | 2.750 | 2.250 | SS2CMP-1.5-304 | SS2CMP-1.5-316 | ||
2″ | 3.500 | 3.000 | SS2CMP-2-304 | SS2CMP-2-316 | ||
2.5″ | 4.250 | 3.750 | SS2CMP-2.5-304 | SS2CMP-2.5-316 | ||
3″ | 5.000 | 4.500 | SS2CMP-3-304 | SS2CMP-3-316 | ||
4″ | 6.625 | 6.000 | SS2CMP-4-304 | SS2CMP-4-316 | ||
6″ | 9.875 | 9.000 | SS2CMP-6-304 | SS2CMP-6-316 | ||
8″ | 12.88 | 12.00 | SS2CMP-8-304 | SS2CMP-8-316 | ||
10″ | 15.88 | 15.00 | SS2CMP-10-304 | SS2CMP-10-316 | ||
12″ | 18.88 | 18.00 | SS2CMP-12-304 | SS2CMP-12-316 |
SS2CMP31MP– 90° Non Tapered Reducing Clamp Elbows |
||||||
Tube OD (Size) |
A | B | Part Number 304 |
Part Number 316L |
||
2″ x 1″ | 2.000 | 2.000 | SS2CMP31MP-2×1-304 | SS2CMP31MP-2×1-316 | ||
2″ x 1.5″ | 2.750 | 2.750 | SS2CMP31MP-2×1.5-304 | SS2CMP31MP-2×1.5-316 | ||
2.5″ x 1.5″ | 2.750 | 2.750 | SS2CMP31MP-2.5×1.5-304 | SS2CMP31MP-2.5×1.5-316 | ||
2.5″ x 2″ | 3.500 | 3.500 | SS2CMP31MP-3×1.5-304 | SS2CMP31MP-3×1.5-316 | ||
3″ x 1.5″ | 2.750 | 2.750 | SS2CMP31MP-3×1.5-304 | SS2CMP31MP-3×1.5-316 | ||
3″ x 2″ | 3.500 | 3.500 | SS2CMP31MP-3×2-304 | SS2CMP31MP-3×2-316 | ||
3″ x 2.5″ | 4.250 | 4.250 | SS2CMP31MP-3×2.5-304 | SS2CMP31MP-3×2.5-316 | ||
4″ x 2.5″ | 4.250 | 4.250 | SS2CMP31MP-4×2.5-304 | SS2CMP31MP-4×2.5-316 | ||
4″ x 3″ | 5.000 | 5.125 | SS2CMP31MP-4×3-304 | SS2CMP31MP-4×3-316 |
SS2WUMP– Clamp 180° Return Bends, Polish ID/OD |
||||||
Tube OD (Size) |
A | B | Part Number 304 |
Part Number 316L |
||
1″ | 3.000 | 2.500 | SS2WUMP-1-304 | SSWUMP-1-316 | ||
1.5″ | 4.500 | 3.500 | SS2WUMP-1.5-304 | SSWUMP-1.5-316 | ||
2″ | 6.000 | 4.500 | SS2WUMP-2-304 | SSWUMP-2-316 | ||
2.5″ | 7.500 | 5.500 | SS2WUMP-2.5-304 | SSWUMP-2.5-316 | ||
3″ | 9.000 | 6.500 | SSWUMP-3-304 | SSWUMP-3-316 | ||
4″ | 12.000 | 8.625 | SSWUMP-4-304 | SSWUMP-4-316 |

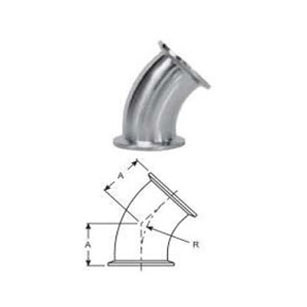

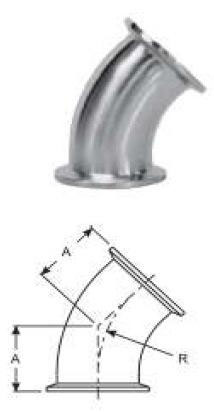

SS2KMP– 45° Clamp Elbows, Polish ID/OD |
||||||
Tube OD (Size) |
A | R | Part Number 304 |
Part Number 316L |
||
1/2″ | 0.966 | 1.125 | SS2KMP-0.5-304 | SS2KMP-0.5-316 | ||
3/4″ | 0.966 | 1.125 | SS2KMP-0.75-304 | SS2KMP-0.75-316 | ||
1″ | 1.125 | 1.500 | SS2KMP-1-304 | SS2KMP-1-316 | ||
1.5″ | 1.437 | 2.250 | SS2KMP-1.5-304 | SS2KMP-1.5-316 | ||
2″ | 1.750 | 3.000 | SS2KMP-2-304 | SS2KMP-2-316 | ||
2.5″ | 2.062 | 3.750 | SS2KMP-2.5-304 | SS2KMP-2.5-316 | ||
3″ | 2.375 | 4.500 | SS2KMP-3-304 | SS2KMP-3-316 | ||
4″ | 3.125 | 6.000 | SS2KMP-4-304 | SS2KMP-4-316 | ||
6″ | 4.625 | 9.000 | SS2KMP-6-304 | SS2KMP-6-316 | ||
8″ | 5.875 | 12.00 | SS2KMP-8-304 | SS2KMP-8-316 | ||
10″ | 7.125 | 15.00 | SS2KMP-10-304 | SS2KMP-10-316 | ||
12″ | 8.375 | 18.00 | SS2KMP-12-304 | SS2KMP-12-316 |

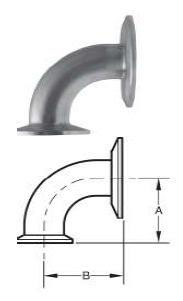

SS2FMP-14– 90° Clamp by Plain Bevel w/ 304 Hex Nut |
||||||
Tube OD (Size) |
A | B | Part Number 304 |
Part Number 316L |
||
1″ | 2.000 | 2.218 | SS2FMP-14-1-304 | SS2FMP-14-1-316 | ||
1.5″ | 2.750 | 2.968 | SS2FMP-14-1.5-304 | SS2FMP-14-1.5-316 | ||
2″ | 3.500 | 3.750 | SS2FMP-14-2-304 | SS2FMP-14-2-316 | ||
2.5″ | 4.250 | 5.375 | SS2FMP-14-2.5-304 | SS2FMP-14-2.5-316 | ||
3″ | 5.000 | 5.406 | SS2FMP-14-3-304 | SS2FMP-14-3-316 | ||
4″ | 6.625 | 7.031 | SS2FMP-14-4-304 | SS2FMP-14-4-316 |
SS2FMP-15– 90° Clamp by Thread Bevel |
||||||
Tube OD (Size) |
A | B | Part Number 304 |
Part Number 316L |
||
1″ | 2.000 | 2.218 | SS2FMP-15-1-304 | SS2FMP-15-1-316 | ||
1.5″ | 2.750 | 2.968 | SS2FMP-15-1.5-304 | SS2FMP-15-1.5-316 | ||
2″ | 3.500 | 3.750 | SS2FMP-15-2-304 | SS2FMP-15-2-316 | ||
2.5″ | 4.250 | 5.375 | SS2FMP-15-2.5-304 | SS2FMP-15-2.5-316 | ||
3″ | 5.000 | 5.406 | SS2FMP-15-3-304 | SS2FMP-15-3-316 | ||
4″ | 6.625 | 7.031 | SS2FMP-15-4-304 | SS2FMP-15-4-316 |

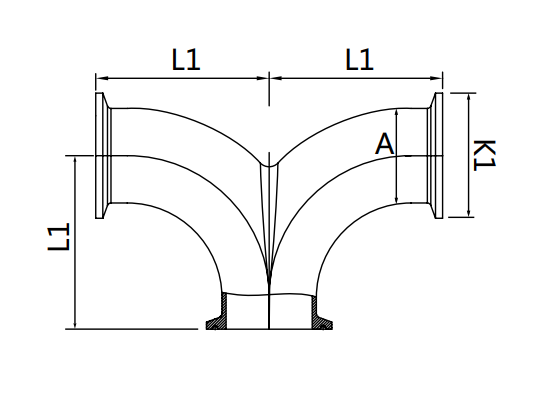

SSCDE- 90° Clamp Double Elbows, Polished | ||||
Size | A | K1 | L1 | Part Number |
1” | 25.4 | 50.5 | 50.8 | SSCDE-1-50-316 |
1 1/4” | 31.75 | 50.5 | 69.85 | SSCDE-1.25-69-316 |
1 1/2” | 38.1 | 50.5 | 60.4 | SSCDE-1.5-60-316 |
2” | 50.8 | 64 | 88.9 | SSCDE-2-88-316 |
2 1/2” | 63.5 | 77.5 | 107.9 | SSCDE-2.5-107-316 |
3” | 76.2 | 91 | 127 | SSCDE-3-127-316 |
4” | 101.6 | 119 | 168.4 | SSCDE-4-168-316 |
