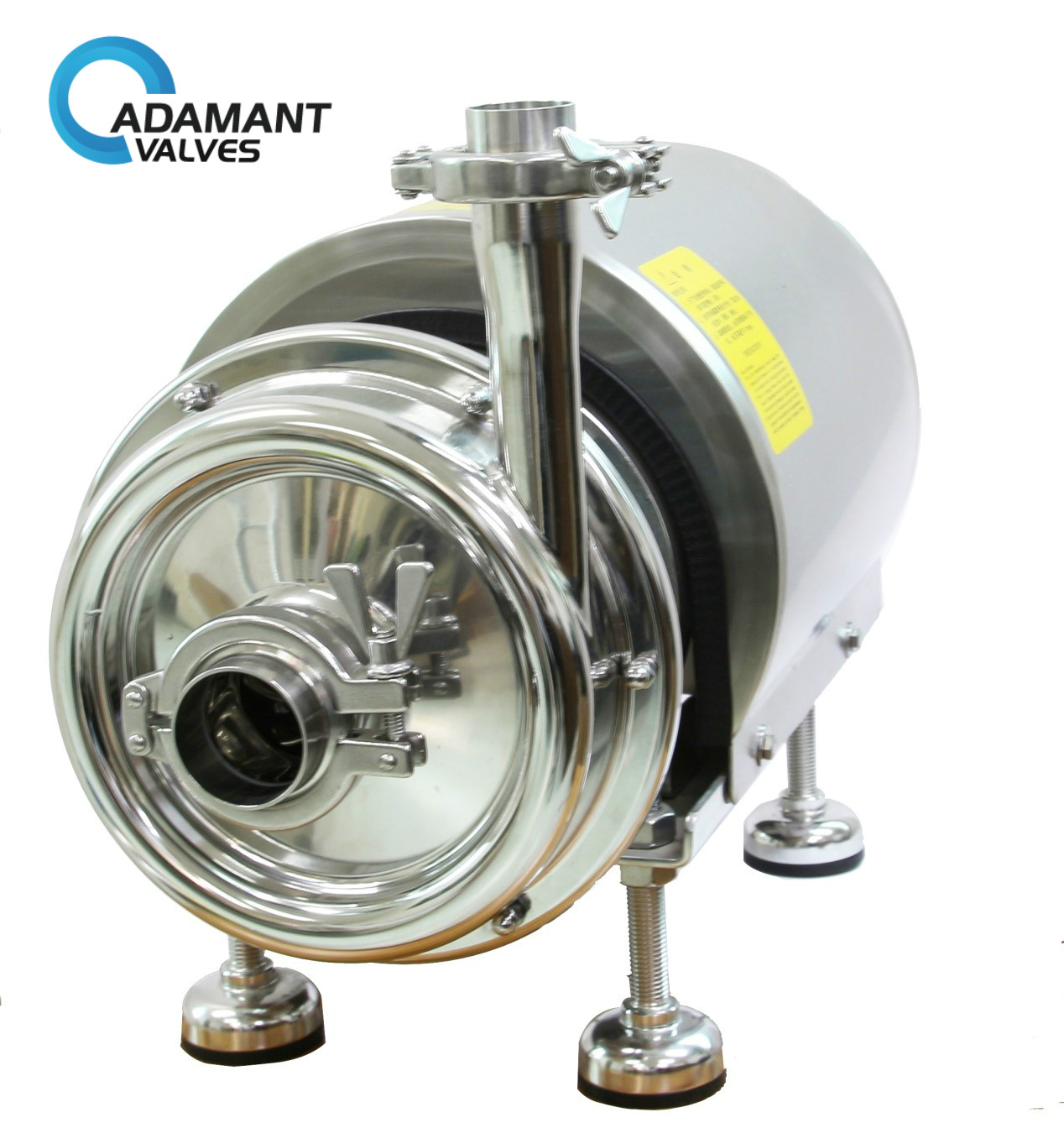

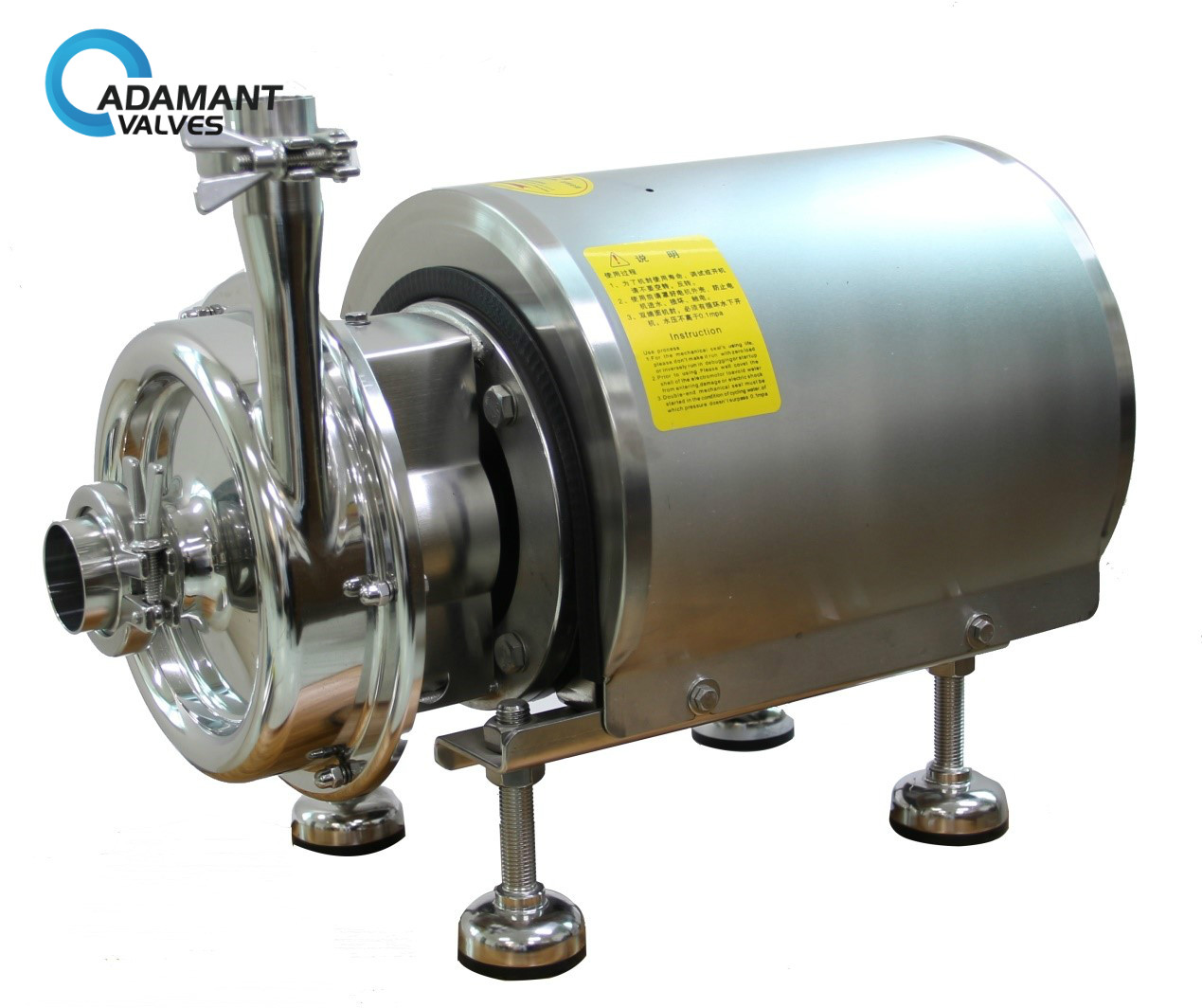

AV-23SCP Sanitary Centrifugal Pump
Availability :
In stock
Specifications:
| Product Name: | Sanitary centrifugal pump |
| Material: | AISI 316L or AISI 304 |
| Standard: | SMS, DIN, RJT, ISO/IDF |
| Connection Way: | Clamp, Male, Flange, Weld, Union |
| Seal: | C/ SIC/ EPDM，C/SIC/VITON |
| Power: | 0.37Kw-37Kw |
| Rate: | 50Hz or 60Hz |
| Max. Flow: | 150 m3/H |
Sanitary Centrifugal Pump Description:
A Sanitary pump is a type of pump which is easily cleanable and has smooth internal surfaces to prevent bacterial growth and therefore prevents contamination of the product.
The most used material in Industry is Stainless Steel 316L. Where Sanitary pumps are required to handle Corrosive liquids, we are able to offer “noble” exotic materials.
Sanitary Centrifugal Pump Specifications:
| Product Name: | Sanitary centrifugal pump |
| Material: | AISI 316L or AISI 304 |
| Standard: | SMS, DIN, RJT, ISO/IDF |
| Connection Way: | Clamp, Male, Flange, Weld, Union |
| Seal: | C/ SIC/ EPDM，C/SIC/VITON |
| Power: | 0.37Kw-37Kw |
| Rate: | 50Hz or 60Hz |
| Max. Flow: | 150 m3/H |
Sanitary Centrifugal Pump Applications:
Sanitary Centrifugal Pumps are used to transport and meter solutions, slurries, and colloids of food and agricultural materials in operations such as food processing that require cleanliness.
