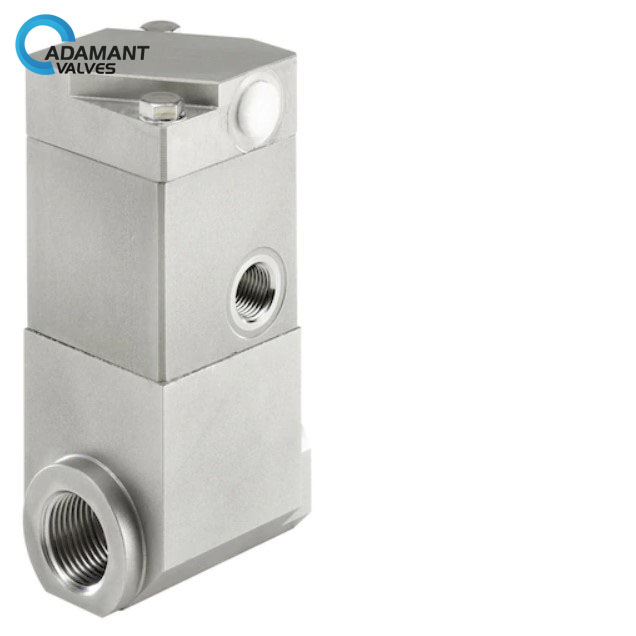

AV-24BP Sanitary Bellow Control Valve, Pneumatic Type (Discontinued)
Availability :
In stock
Specifications:
(Discontinued)
Sanitary Bellow Control Valve, Pneumatic Type Description:
The valve consists of a pneumatic piston actuator with a return spring, a stainless steel body, and PTFE bellows. The PTFE bellows are used for the separation of the medium. With the appropriate installation (body to bottom) the valve is self-draining. The materials used and the internal contours are simple to clean (CIP and SIP).
High Medium resistance
Easy to clean for hygienic applications
Long service life
Compact

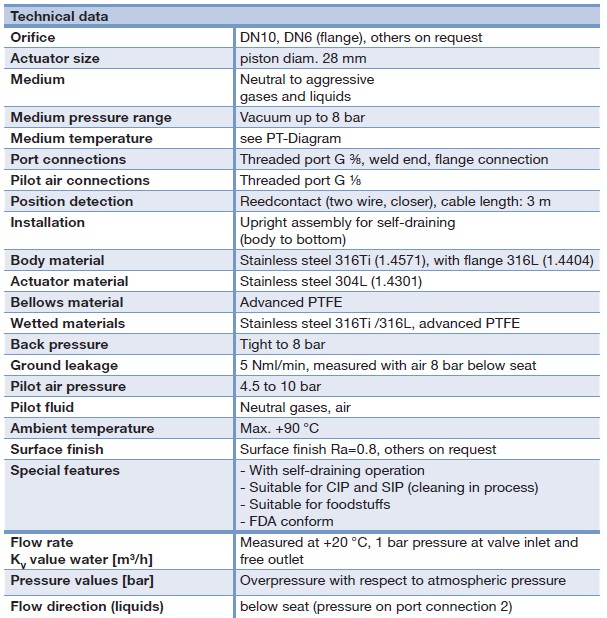

Sanitary Bellow Control Valve, Pneumatic Type Specifications:
Sanitary Bellow Control Valve, Pneumatic Type Applications:
Sanitary Bellow Control Valve, Pneumatic Type is suitable for food technology. The modular structure permits configuration with different armatures and customized port connectors. The pneumatic actuator is servo-assisted by a pilot valve, a valve block, or similar.
