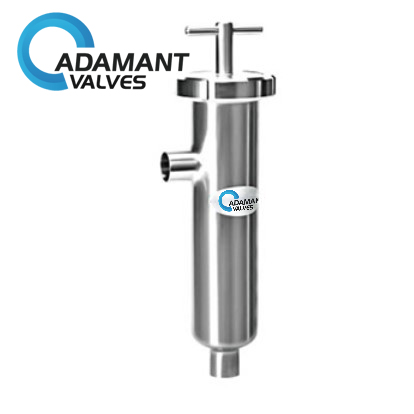

AV-29SA Sanitary Angle filter
Materials: Stainless Steel
Gasket: Silicon MVQ FPM
Size: DN25-DN150 1″-6″
Operating Temp. : -10 to 120℃
Max Pressure: 10 bar 145PSI
Connections: clamp, thread, weld
Standard: DIN, SMS, RJT, IDF, 3A
Hole Dia: 0.5mm to 2.0mm
Mesh size: 30 Grits to 300 Grits
Related products: Sanitary Y type filter, Sanitary Duplex filter, AV-28MF Magnetic Filter, AV-14 Sanitary Filters
Sanitary Angle filter Description
Sanitary Angle filters are widely used in the auxiliary service for food processing, cosmetic, chemicals, and pharmacy industries. With a high hygienic design, it is mainly used to filter the particulates which will damage pumps and some other types of equipment. The filter basically consists of an inlet, outlet, and filter body. Filter mesh is installed inside to remain all particles equal or greater than mesh.
Sanitary Angle filter Specification
Size | H | L | D1 | D | T | |
1 | 2 | |||||
DN25 | 431 | 77.5 | 28 | 29 | 85 | 1.5 |
DN32 | 431 | 77.5 | 34 | 35 | 85 | 1.5 |
DN40 | 431 | 77.5 | 40 | 41 | 85 | 1.5 |
DN50 | 431 | 77.5 | 52 | 53 | 85 | 1.5 |
DN65 | 561 | 101 | 70 | – | 102 | 2.0 |
DN80 | 580 | 107 | 85 | – | 114 | 2.0 |
DN100 | 724 | 105.5 | 100 | – | 154 | 2.0 |
Sanitary Angle filter Applications
Sanitary Angle filter is used in food processing, cosmetic, chemicals, and pharmacy industries.
