AV-19N2 Sanitary 2-Way Plug Valve with Tri-Clamp Ends, Manual Type

Availability : In stock

Specifications:

Size 1″-3″/DN25-75
Working pressure 0-6 bar (87psi)
Outside surface Matte, light, sandblast and electronic polishing
Body Material AISI 304 or AISI 316L, 304L and 316 materials are available upon request.
Leakage Up to 0.02% of Kv/Cv
△Pm Max. 800kPa(116psi), water
Working temperature 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.
Sealing material PTFE
Connection Welded,tri-clamp, flange, and thread
Surface Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default
Standards 3A, DIN, SMS, IDF, ISO
SKU: AV-19N2 Category:

Sanitary 2-Way Plug Valve Description:

The 2 way plug valve is a closing or plunger-shaped rotary valve. Its valve plug can be cylindrical or conical in shape. In a cylindrical valve plug, the passage is generally rectangular; in a tapered valve plug, the passage is trapezoidal. It is most suitable for use as a cutting and closing medium and a shunt, it can also be used for throttling depending on the applicable properties and the erosion resistance of the sealing surface.

Sanitary 2-Way Plug Valve Specifications:

2-way & 3-way plug valve for Weld/Male/Female/Clamp

2-way

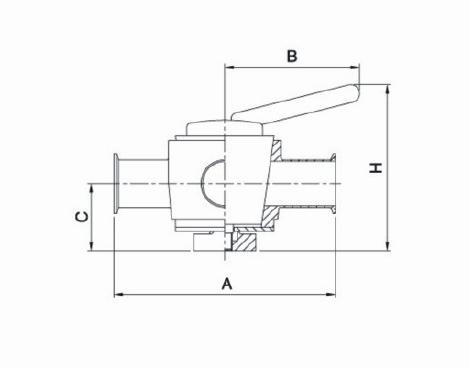

Size Weld A Male A Clamp A B D
1″ 184.2 115.9 117 58.3 128.4
1.5″ 198.4 147.6 142.7 61 164.4
2″ 223.8 173 144.2 72.4 178
2.5″ 260.4 209.6 150.6 86.4 223.4
3″ 290.5 239.7 180.7 90.6 241.4



Size 1″-3″/DN25-75
Working pressure 0-6 bar (87psi)
Outside surface Matte, light, sandblast and electronic polishing
Body Material AISI 304 or AISI 316L, 304L and 316 materials are available upon request.
Leakage Up to 0.02% of Kv/Cv
△Pm Max. 800kPa(116psi), water
Working temperature 14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.
Sealing material PTFE
Connection Welded,tri-clamp, flange and thread
Surface Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default
Standards 3A, DIN, SMS, IDF, ISO

Sanitary 2-Way Plug Valve Options:

* Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.

* The seat and gasket can be EPDM, VMQ (Silicone), or Viton (FPM), all complying with FDA 21CFR177.2600.

* End connection can be butt-welded, sanitary tri-clamp, threaded, weld, or others upon request.

* Handles: 4-position pull handle; multi-position handle with plastic cover or in pure stainless steel.

* Standards: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE



Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double-acting—air to open, air to close

2-way valve

  • Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
  • Standards: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE

 Sanitary 2-Way Plug Valve Design Features:

  • Rubber (Silicone) or stainless steel plug
  • Meets 3-A sanitary finish
  • Temperature to 248° F
  • Bevel seat ends available on request

Sanitary 2-Way Plug Valve Applications:

Plug valves are popular in the dairy, beverage, pharmaceutical, beer, chemical, food, and other industrial areas. The structure of the valve is reasonable, easy to remove and wash.
