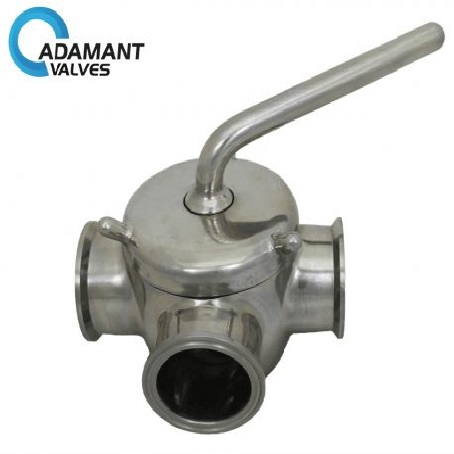

AV-19N3 Sanitary 3-Way Plug Valve with Tri-Clamp Ends, Manual Type

Availability : In stock

Specifications:

Size	1″-3″/DN25-75
Working pressure	0-6 bar (87psi)
Outside surface	Matte, light, sandblast and electronic polishing
Body Material	AISI 304 or AISI 316L, 304L and 316 materials are available upon request.
Leakage	Up to 0.02% of Kv/Cv
△Pm	Max. 800kPa(116psi), water
Working temperature	14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.
Sealing material	PTFE
Connection	Welded,tri-clamp, flange and thread
Surface	Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default
Standards	3A, DIN, SMS, IDF, ISO

Sanitary 3-Way Plug Valve Description

The 3 way plug valve is a closing or plunger-shaped rotary valve. Its valve plug can be a cylindrical shape or conical shape. In a cylindrical valve plug, the passage is generally rectangular; in a tapered valve plug, the passage is trapezoidal. Comparing to the globe valve, plug valve has a plug to close the flow, which is different from the gate of the globe valve.

Sanitary 3-Way Plug Valve Specifications

2-way & 3-way plug valve for Weld/Male/Female/Clamp

Size	1″-3″/DN25-75
Working pressure	0-6 bar (87psi)
Outside surface	Matte, light, sandblast and electronic polishing
Body Material	AISI 304 or AISI 316L, 304L and 316 materials are available upon request.
Leakage	Up to 0.02% of Kv/Cv
△Pm	Max. 800kPa(116psi), water
Working temperature	14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.
Sealing material	PTFE
Connection	Welded,tri-clamp, flange, and thread
Surface	Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default
Standards	3A, DIN, SMS, IDF, ISO

Size	Weld A	Male A	Clamp A	B	D
1″	184.2	115.9	117	58.3	128.4
1.5″	198.4	147.6	142.7	61	164.4
2″	223.8	173	144.2	72.4	178
2.5″	260.4	209.6	150.6	86.4	223.4
3″	290.5	239.7	180.7	90.6	241.4

Sanitary 3-Way Plug Valve Options

* Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.

* The seat and gasket can be EPDM, VMQ (Silicone), or Viton (FPM), all complying with FDA 21CFR177.2600.

* End connection can be butt-welded, sanitary tri-clamp, threaded, weld, or others upon request.

* Handles: 4-position pull handle; multi-position handle with plastic cover or in pure stainless steel.

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

NC operated: normally closed (fail closed)—air to open, spring to close
NO operated: normally open (fail open)—air to close, spring to open
AA operated: double-acting—air to open, air to close

Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
Standards: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE

Sanitary 3-Way Plug Valve Design features

Rubber (Silicone) or stainless steel plug
Meets 3-A sanitary finish
Temperature to 248° F
Bevel seat ends available on request

Sanitary 3-Way Plug Valve Applications

Plug valves are popular in the dairy, beverage, pharmaceutical, beer, chemical, food, and other industrial areas. The structure of the valve is reasonable, easy to remove and wash.
