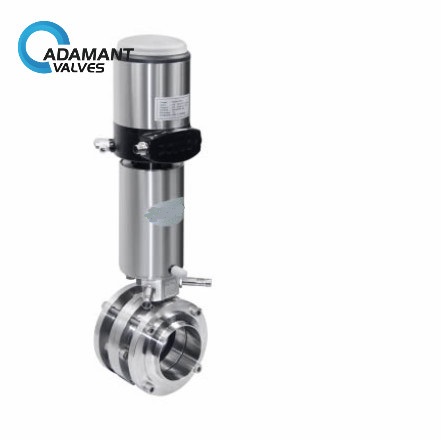

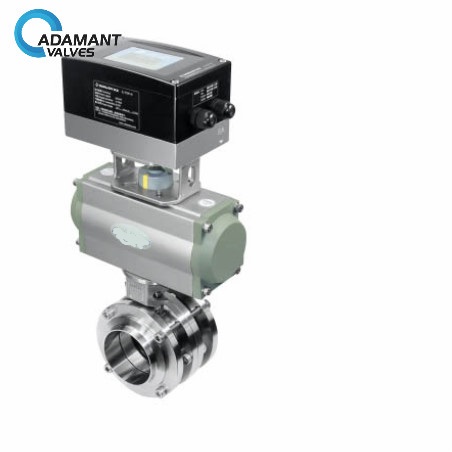

AV-1RTPC Regulation Type Pneumatic Butterfly Valve

Availability : In stock

Specifications:

Size	1”-4”; DN25-DN100
Material	304/316L
Connection	Clamp, weld, thread, flange and other standards
Working Temperature	130 Degree Centigrade
Work Pressure	10bar
Support	DEVICE NET BUS
Acting	Singe-acting(standard), double- acting(option
Power Suppliy	DC 24V ±10%
Analog Signals	0/4-20Ma,0-5/10V

Regulation Type Pneumatic Butterfly Valve Description:

Regulation Type Pneumatic Butterfly Valve is one of the positive shut-off quarter-turn valves It’s majorly used in utility services such as air, gas, steam, or liquid. They are available in a variety of designs depending on the service and the pressure-temperature rating.

These valves can also be used for vacuum service. Whenever used for cryogenic service, the valve shall be provided with an extended shaft to clear the insulation.

Regulation Type Pneumatic Butterfly Valve Specifications:

Size	1”-4”; DN25-DN100
Material	304/316L
Connection	Clamp, weld, thread, flange and other standards
Working Temperature	130 Degree Centigrade
Work Pressure	10bar
Support	DEVICE NET BUS
Acting	Singe-acting(standard), double- acting(option
Power Suppliy	DC 24V ±10%
Analog Signals	0/4-20Ma,0-5/10V

Regulation Type Pneumatic Butterfly Valve Applications:

Regulation Type Pneumatic Butterfly Valve can be applied in various fluid control systems, such as food and beverage, wine, pharmaceutical, and other industries. The valve has features of no dead-end, large flow, simple maintenance, small volume appearance.
