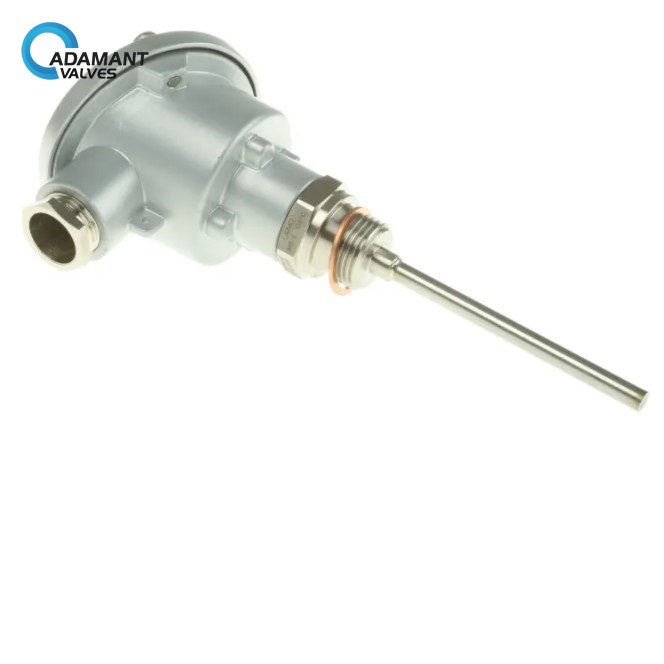

AV-13PT PT100 RTD Temperature Probe
| Specification | |
| Sensor Type | PT100 |
| Probe Type | RTD |
| Probe Length | 100mm |
| Probe Diameter | 6mm |
| Working Temperature | -50 to +400℃ |
| Process connection | Thread, Stainless steel 1.4571 |
PT100 RTD Temperature Probe Description
Screw-in RTD temperature probe for standard applications is preferentially used for measuring temperatures in liquids and gases. A decisive selection criterion is the reliable sealing feature of this installation type with vacuum and with overpressure. The application areas are, among others, in the air conditioning technology and refrigeration engineering as well as the HVAC and apparatus engineering sector.
The connection head is suitable for ambient temperatures up to +100 °C. In addition to the standard connection head form B, design BUZ is also available.
The measuring insert is normally fitted with a Pt100 temperature sensor according to DIN EN 60751, Class B in 2-wire circuit; versions with Pt500 or Pt1000 temperature sensors can also be supplied, as well as 4-wire circuit connections. A transmitter can be optionally integrated into the connection head.
PT100 RTD Temperature Probe Specifications
| Terminal head | Form B |
| Temperature | -170 to +500 °C |
| Process connection | Screw connection G 1/2 |
| Connecting cable | Covered in stainless steel with 0.35 mm² and bend protection |
| Option | Terminal head or connecting cable. For connecting to JUMO safetyM STB/STW type 701150 |
| Application areas | Heat transmission systems according to DIN 4754; air-conditioning and refrigeration technology; heating, furnace construction, and apparatus engineering |
| Approvals | DIN 4754, DIN EN 14597 (DIN 3440) |
| Protection tube | Stainless steel 1.4571, steel St. 35.8, welding shoulder steel 15Mo3 |
| Terminal head | Form B |
| Temperature | -170 to +500 °C |
| Process connection | Screw connection G 1/2 |
| Connecting cable | Covered in stainless steel with 0.35 mm² and bend protection |
| Option | Terminal head or connecting cable. For connecting to JUMO safetyM STB/STW type 701150 |
| Application areas | Heat transmission systems according to DIN 4754; air-conditioning and refrigeration technology; heating, furnace construction, and apparatus engineering |
| Approvals | DIN 4754, DIN EN 14597 (DIN 3440) |
| Protection tube | Stainless steel 1.4571, steel St. 35.8, welding shoulder steel 15Mo3 |
PT100 RTD Temperature Probe Applications
Used for measuring temperatures in liquids and gases. Typical application areas are in air conditioning technology, refrigeration engineering and HVAC.
