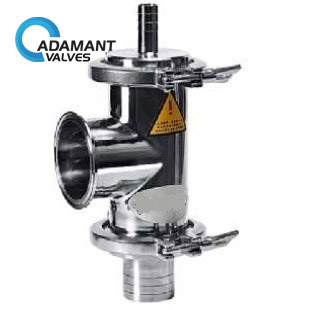

AV-20PT Plunger Type Filling Valves

Plunger Type Filling Valves Description

Plunger Type Filling Valve is a valve that uses the plunger to generate pressure and negative pressure to achieve filling. It is very suitable and widely used in various foods, beverages, juices – a kind of medium filling equipment system with viscosity.

Plunger contraction produces negative pressure. Liquid was sucked into the valve chamber by vacuum, forcing the suction inlet of the one-way valve opened, and the outlet closed. Liquid pressure increases when the plunger is extended, forcing the one-way valve opened and the inlet closed, so the liquid will be transported.

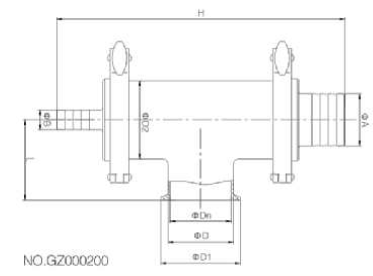

Plunger Type Filling Valves Specifications

Size	Dn	D	D1	D2	A	B	H	L
1.5”	35	38	50.5	51	38	19.5	244	60
2”	48	51	64	51	38	19.5	244	60
2.5”	59.5	63.5	77.5	63.5	50.8	19.5	280	78
3”	72.2	76.2	91	76.2	50.8	19.5	280	78

Plunger Type Filling Valves Applications

Plunger Type Filling Valves is very suitable and widely used in various foods, beverages, juices – a kind of medium filling equipment system with viscosity.

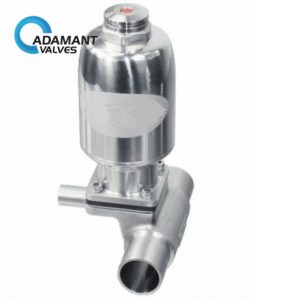

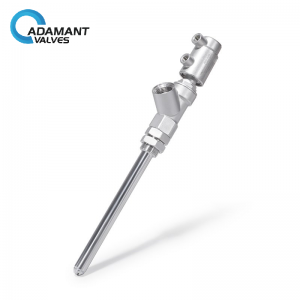

Related products: Particle Filling Valves, Diaphragm Type Filling Valves, AV-20 Sanitary Filling Valve With Internal Sealing
