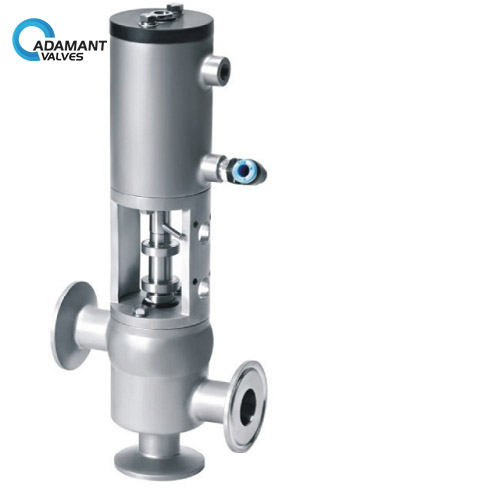

AV-5MDS Mini Divert Seat Valve
Availability :
In stock
- Size: 1/2″-3/4″, DN15-DN20
- Material: 304/316L
- Seal-in-one design
- Meet the high frequency opens and closes
- No dead angle designed to meet the requirements of 3A-85-00
- Seal: FDA177.2600
Connection: Clamp, weld, thread, DIN、SMS、ISO
Mini Divert Seat Valve Description
Mini Divert Seat Valve is particularly suitable for filling machine equipment and can replace the traditional type of rotary valve.

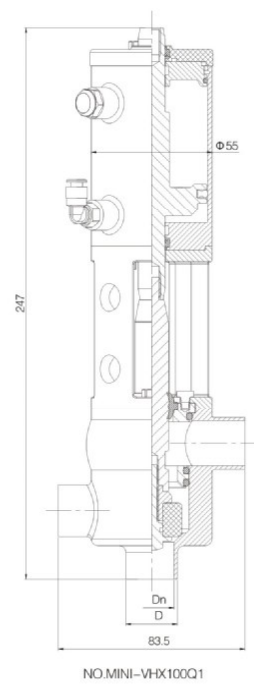

Mini Divert Seat Valve Specifications
| Size | Dn | D |
| φ19 | 16 | 19 |
| DN20 | 19 | 22 |
| 20 | 23 |
Mini Divert Seat Valve Applications
Mini Divert Seat Valve is particularly suitable for the filling machine equipment and can replace the traditional type of rotary valve.
