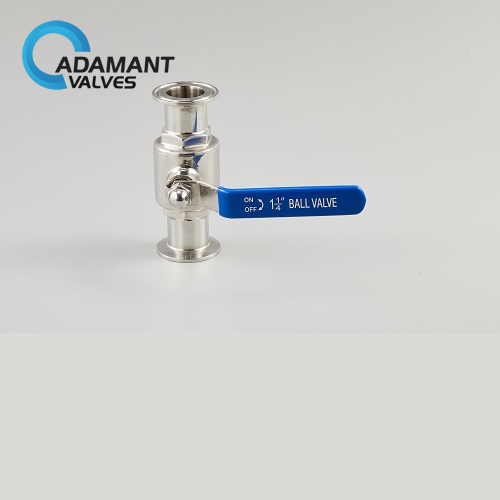

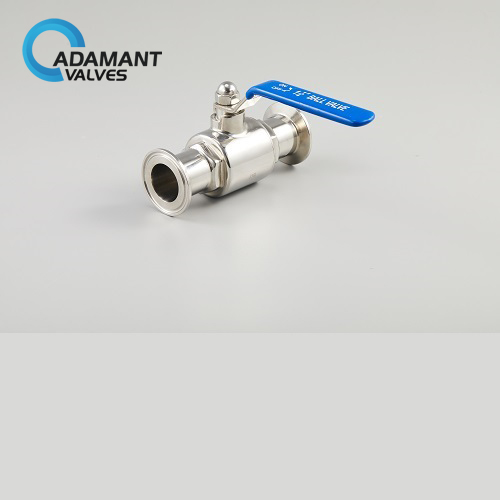

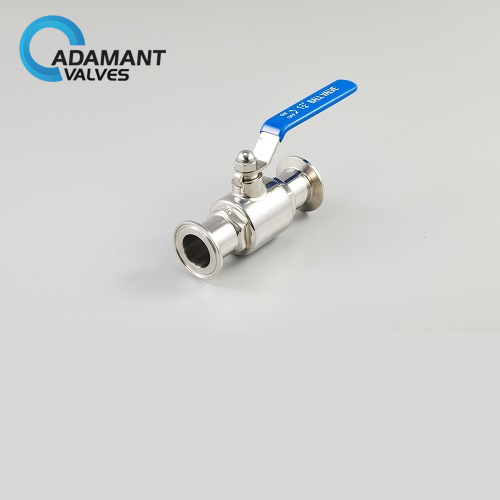

AV-2MC Manual Clamped Direct Way Ball Valve

Manual Clamped Direct Way Ball Valve Applications:

Sanitary direct way ball valve adopts standard electronic polishing, smooth surface to ensure cleanliness, no media accumulation area, no potential pollution. The valve can be assembled and disassembled quickly and easily to open and maintain the valve, and the shutdown time of the process can be shortened. It is widely used in food, pharmaceutical, cosmetics, clean steam, beer, beverage, biochemical industrial process control occasions.

Design Features:

• Small fluid resistance
• Simple structure, small volume, lightweight, and easy maintenance
• Easy to operate, open and close rapidly, only need to rotate 90° from fully open to fully closed.
• When the valve is fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium and the medium will not cause corrosion to the valve sealing surface when the medium passes.

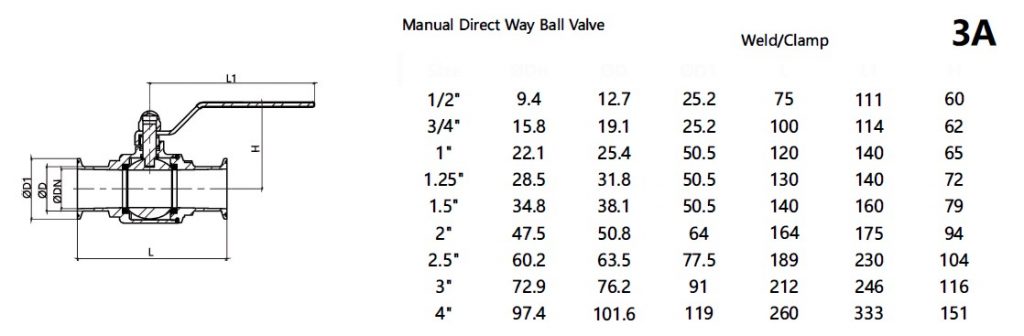

• Size: 1/2″ -4″ . <t>12.7—<t>101.6
• Connection: Clamp, Weld, Thread, Flange, etc.
• Driving mode: Manual, Pneumatic, Electric
• Standard: ISO、DIN、IDF、SMS、3A etc.
• Quality: The inside and outside of the product are treated with high-end polishing equipment to meet the surface precision requirements
• Working Pressure:0-1 OBar
• Working temperature:-40°C – + 1 so·c
