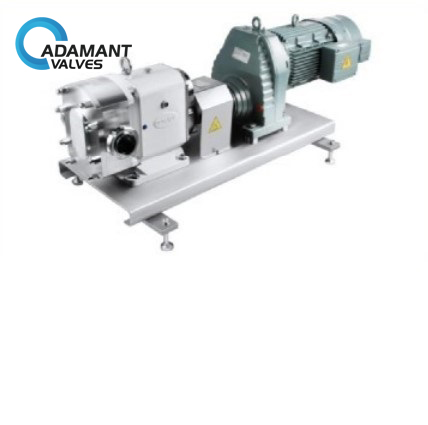

AV-18FC Lobe Pump with frequency converter helical gear
Availability :
In stock
Maximum flow: 90m3 / H
Maximum pressure: 20bar
Maximum temperature: 150℃
Maximum speed: 750 rpm
Material: ASTM 316L, 1.4404
Inside surface: Ra 0.8μm
Lobe Pump with frequency converter helical gear Description
Lobe Pump with frequency converter helical gear is equipped with helical gearbox and frequency variable motor. According to the user’s individual needs. The inverter can be set and edited. It is also automatically controlled by PLC programming.
Lobe Pump with frequency converter helical gear Applications
Lobe Pump with frequency converter helical gear is suitable for transferring viscous high and low-viscous media in the food-processing, cosmetics, and pharmaceutical industries.
