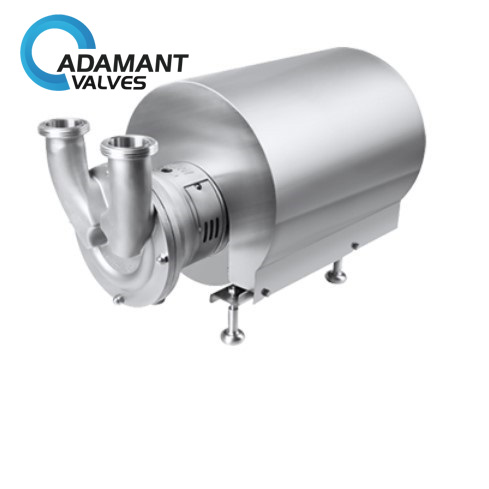

AV-18LC Liquid Circulate Self-priming Pump CIP-U

Availability : In stock

Max Flow rate: 40m3/h

Max Head: 42 H/M

Max suction: 8 / M

Temperature: -20℃ to 130℃

Power: 1.5-15KW

Material: 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5%

Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm

Machine seal: single machine seal, double machine seal

Inlet/Outlet Connection: Thread, Clamp, Flange, Aseptic Flange

SKU: AV-18LC Category:

Liquid circulate self-priming pump CIP-U Description

Liquid circulates self-priming pump CIP-U series is a multifunctional material-liquid mixing pump with functions of mixing, shearing, emulsifying, homogenizing, differentiating, refining, crushing, and material improvement. Compare with the traditional production process, this pump is simpler, more convenient, and economical, it can improve the production efficiency& improve the quality of the materials to be treated.

Liquid circulate self-priming pump CIP-U Specifications

Max Flow rate: 40m3/h
Max Head: 42 H/M
Max suction: 8 / M
Temperature: -20℃ to 130℃
Power: 1.5-15KW
Material: 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5%
Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
Machine seal: single machine seal, double machine seal
Inlet/Outlet Connection: Thread, Clamp, Flange, Aseptic Flange

Liquid circulate self-priming pump CIP-U Applications

Used for the food processing, pharmaceutical, and chemical industries.

Related products: AV-23SCP Sanitary Centrifugal Pump, AV-18AVB Sanitary Liquid Ring Pumps, AV-18AVH Sanitary Centrifugal Pumps
