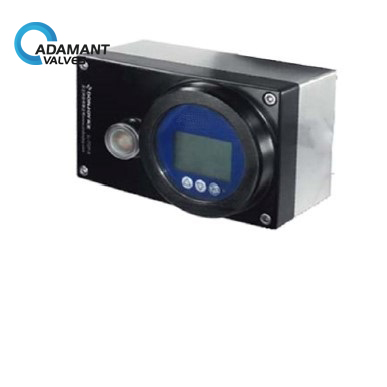

AV-30PID Intelligent-PID-process Controller & Valve Positioner IL-TOP 1443/1442

Intelligent-PID-process controller & Valve positioner IL-TOP 1443/1442 Description

Intelligent-PID-process controller & Valve positioner IL-TOP 1443/1442 is a pneumatic controller which is designed for process control of valve. It is compatible with most PLC (programmable logic controller) automatic system, with digital communication or AS-I BUS. It includes signal transmission and LED position indicating light, used for controlling process valves of all kinds. Information collection comes from PLC or the signal of other automatic control equipment which could turn the valve on and off and reflect the current position of the valve simultaneously.

Intelligent-PID-process controller & Valve positioner IL-TOP 1443/1442 Technical Parameters

Gas Source Technical Parameters
Gas source connection	P= Gas Supply
	R= Exhaust vent
	1…3= Connection port
Gas	Lubricated compressed air, inert gas
Oil content	1 ppm
Temperature	50℃(155℉)
Pressure	1.5-7 bar
Standard Flow	200NI/min
