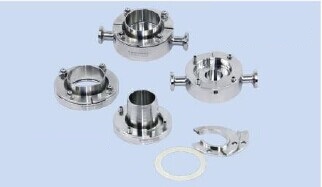

SS-HAC Hygienic Aseptic Connectors
Size: DN10-DN100, 1/2″-4″
Material: 1.4404/316L(welded flange and split ring)
Surfaces: 20 Ra max (product contact surface)
47 Ra max (other surfaces)
Operating pressure: -15 – 100 psi
Operating temperature: -110 – 390°F
Connection styles: Tri-Clamp
DIN, ISO, and BS available upon request
The Hygienic Aseptic Connector is a connecting device with clamp connector, used for connecting to tank equipment. The product is simple design excellent sterile performance.
Quick install various instruments and valves with TC connectors to tank equipment. It’s standard, zero dead angles, and the replacement of the instrument is very simple and convenient.
Tank connector: Tank connector is mainly used for eliminating dead angle, which appears when the variety of valves and instruments with TC clamp connector mounted to the tank equipment.
Piping connector: The piping connector is mainly used to solve the dead angles which cause by complex piping connectors.
Size: DN10-DN100, 1/2″-4″
Material: 1.4404/316L(welded flange and split ring)
Surfaces: 20 Ra max (product contact surface)
47 Ra max (other surfaces)
Operating pressure: -15 – 100 psi
Operating temperature: -110 – 390°F
Connection styles: Tri-Clamp
DIN, ISO, and BS available upon request
Tank connector Piping connector
Size | D | H | H1 | A |
AC-21 | 75 | 28 | 40 | 115 |
AC-32 | 85 | 28 | 40 | 125 |
AC-41 | 100 | 28 | 40 | 140 |
AC-52 | 120 | 35 | 46 | 160 |
AC-61 | 135 | 35 | 46 | 175 |
AC-72 | 150 | 38 | 49 | 190 |
