AV-3S High Performance Swing Check Valve

Availability : In stock

Specifications:

Size DN 2-12
Working temperature -10 ~ 110°C
Working pressure 16 Bar Max.
Body material 316 L/ aluminum bronze
Sealing material NBR

High-Performance Swing Check Valve Description:

Swing check valve is a device for preventing the backflow of media on the pipeline. It is an ultra-thin check valve. This valve has the advantages of simple structure, beautiful appearance, lightweight and easy installation. This wafer swing check valve can be put both vertically and horizontally. This device’s mechanical strength is powered by its mono-bloc disc and stem and combined with body gasket. It is short in length and contains a hoisting eye. This apparatus also has an ISO PN10.16 in between the flanges.

high performance swing check valve

 High-Performance Swing Check Valve Specifications:

Size DN 2-12
Working temperature -10 ~ 110°C
Working pressure 16 Bar Max.
Body material 316 L/ aluminum bronze
Sealing material NBR

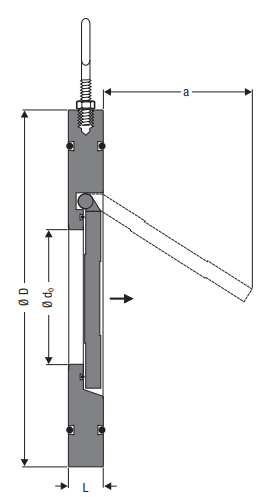

High Performance Swing Check Valve

mm inch L  Φd a φd0 Weight [kg]
50 2 14 109 35 32 0.95
65 2 1/2 14 129 48 40 1.2
80 3 14 144 60 54 1.6
100 4 18 164 78 70 2.5
125 5 18 195 98 92 3.5
150 6 20 220 116.5 112 4.7
200 8 22 275 160 154 7.6
250 10 26 330 200 200 13.2
300 12 32 380 235 240 20.5

High-Performance Swing Check Valve Applications:

Swing check valve is mainly suitable for the water supply system, petroleum, chemical industry, metallurgy, and other industrial sectors, and is most suitable for places with limited installation space.
