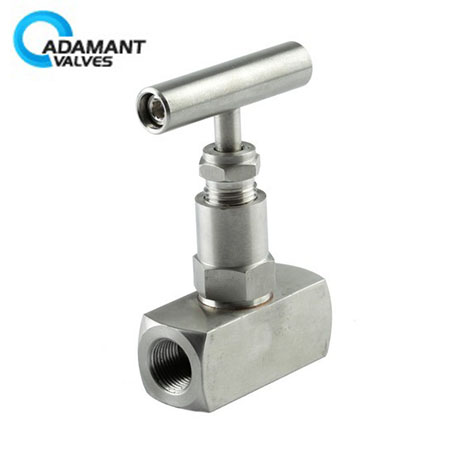

AV-HN High Performance Needle Valve

Availability : In stock

Specifications:

Standard Models, Sizes And Connection Types
Let-Lok Direct Tubing Connection ( With Carbon fiber Sealing Element) NPT Female Jagged Connection ( With PTFE Or Carbon Fiber Sealing Element)
1/4’’ OD 1/4’’ OD
3/8’’ OD 3/8’’ OD
1/2’’ OD 1/2’’ OD
Property
Material 316L SS
Size 1/8” -1’’ ; 6mm – 25mm
Connection Types
Let-Lok (tube Fittings)
Jagged NPT

Pipe weld connection (SW or BW )

Special types of jags and connections.

Sealing elements PTFE  or carbon fiber
Max.pres. 414 Barg (6000 Psig) or 690 barg(10000 Psig)
Max.temp. 204°c, PTFE İle / with 600°c, carbon fiber İle/ with Carbon fiber.
Additional Properties Metallic handle fit to work under heavy conditions.
SKU: AV-HN Category:

High-Performance Needle Valve Description:

The High-Performance Needle Valve is evolved from the stop valve, also called the needle valve stop valve. The difference in these two valves is that the spool of the needle valve is a sharp cone, which is inserted into the valve seat like a needle. The valve shape is more resistant to pressure than other types of valves and has good sealing performance, so it is generally used for sealing or pipe switching of smaller flow, higher pressure gas or liquid medium. The needle valve is most suitable for use with a pressure gauge. The general needle valve shape is made of a threaded connection (of course, flanges and other forms of connection) for easy pairing of pressure gauges.

High-Performance Needle Valve Performance Advantages:

1. The shape of the needle valve can withstand greater pressure than other types of valves;

2. The shape of the needle valve is most suitable for use with a pressure gauge. The general needle valve shape is made into a threaded connection;

3. Long service life. Even if the sealing surface is damaged, you only need to replace the vulnerable parts;

4. Good sealing performance, generally used for sealing of small flow, high-pressure gas or liquid medium.

High-Performance Needle Valve Applications:

– Oil and gas transmission line

-Production pipeline and storage equipment for refined oil

– On the pipeline of city gas and natural gas, the needle valve with flange connection and internal thread connection is selected.

– Oxygen piping system in metallurgical systems

– The piping system and device for low-temperature media

-In the device and piping system of corrosive medium such as acid and alkali in the chemical system

High-Performance Needle Valve Specifications:

Standard Models, Sizes And Connection Types
Let-Lok Direct Tubing Connection ( With Carbon fiber Sealing Element) NPT Female Jagged Connection ( With PTFE Or Carbon Fiber Sealing Element)
1/4’’ OD 1/4’’ OD
3/8’’ OD 3/8’’ OD
1/2’’ OD 1/2’’ OD
Property
Material 316L SS
Size 1/8” -1’’ ; 6mm – 25mm
Connection Types
Let-Lok (tube Fittings)
Jagged NPT

Pipe weld connection (SW or BW )

Special types of jags and connections.

Sealing elements PTFE  or carbon fiber
Max.pres. 414 Barg (6000 Psig) or 690 barg(10000 Psig)
Max.temp. 204°c, PTFE İle / with 600°c, carbon fiber İle/ with Carbon fiber.
Additional Properties Metallic handle fit to work under heavy conditions.
