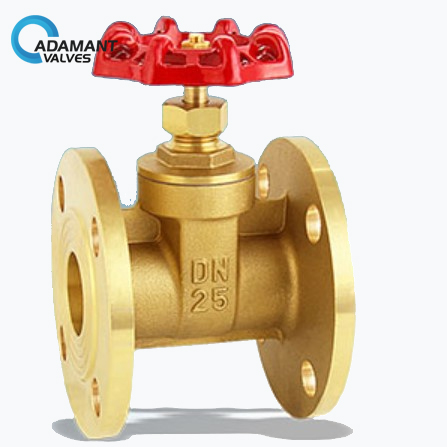

AV-FBGV Flanged Brass Gate Valve
Availability :
In stock
Materials: brass/bronze
Size: DN20-DN100
Max Temp. : -20℃-120℃
Set Pressure: 1.6MPa
Applicable Medium: water, non-corrosive medium
Flanged Brass Gate Valve Description
Flanged Brass Gate Valve is a control component in the pipeline system that is driven by the handwheel to rotate the gate to move along the vertical direction of the channel axis to cut off the medium. It has the advantages of small fluid resistance, small opening and closing torque, and unrestricted medium flow direction.

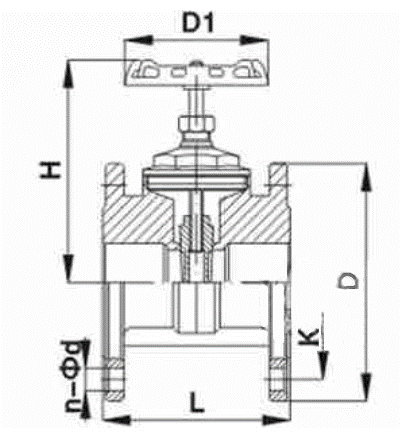

Flanged Brass Gate Valve Specification
| DN | L | D | H | K | D1 |
| 15 | 88 | 100 | 95 | 75 | 78 |
| 25 | 91 | 110 | 104 | 85 | 78 |
| 32 | 105 | 134 | 123 | 100 | 108 |
| 40 | 115 | 140 | 137 | 110 | 108 |
| 50 | 118 | 153 | 144 | 125 | 108 |
| 65 | 128 | 176 | 172 | 145 | 126 |
| 80 | 147 | 192 | 189 | 160 | 146 |
| 100 | 164 | 212 | 234 | 180 | 180 |
Flanged Brass Gate Valve Applications
Flanged Brass Gate Valve is a control component in the pipeline system that is driven by the handwheel.
