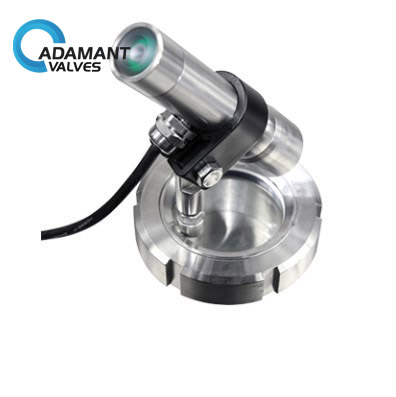

AV-27EL Explosion-proof Light for Sight Glass
- Specifications: 5″-12″ to DN40-DN300
- Connection: thread, clamp, welding, DIN, SMS, IDF
- Gasket material: EPDM NBR meets FDA177.2600
- Material: AISI 304 (1.4301) AISI 316L (1.4404)
- Maximum temperature: -10℃-130℃
- bracket multi-angle connection thread M8
- Function options
All stainless-steel mirror lamp DC 24V power supply
No detention, zero dead angles, strong light, white cold light source, waterproof, explosion-proof design
Explosion-proof Light for Sight Glass Description
Explosion-proof Light for Sight Glass consists of a stainless-steel structure and tempered glass. The flow of materials can be clearly and accurately observed through it. In the food processing, cosmetics, pharmaceutical, and fine chemical industries. The glass with bracket can rotate at any angle or increase or decrease the height to meet various lighting needs.
Explosion-proof Light for Sight Glass Specifications
| Specifications | 1.5″-12″ to DN40-DN300 |
| Connection | thread, clamp, welding, DIN, SMS, IDF |
| Gasket material | EPDM NBR meets FDA177.2600 |
| Material | AISI 304 (1.4301) AISI 316L (1.4404) |
| Maximum temperature | -10℃-130℃ |
Explosion-proof Light for Sight Glass Applications
In the food processing, cosmetics, pharmaceutical, and fine chemical industries.
