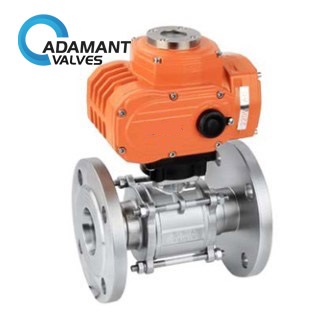

AV-11EA Explosion-proof Electric Actuators

Availability : In stock

Materials: Stainless steel, Ceramic

Type:

Standard switch type (type B)
Passive contact type (S type)
With position signal type (K type)
opening signal type (R type)
Intelligent adjustment type (A type)

Technical specifications:

Power: DC 24V AC 110V 220V

Opening and closing time: 10/S-100/S

Torque: 6N.M to 2000N.M

Protection: IP67 rating

Explosion-proof: EX DII BT4 (optional)

Explosion-proof Electric Actuators Description

Standard switch type (type B)

The opening and closing operation of the valve is realized by the switch circuit, and a set of active contact signals are outputted at the same time, indicating that the valve position is in a fully open or fully closed state.

Passive contact type (S type)

The switch circuit is used to open and close the valve, and a set of passive contact signals are outputted to indicate that the valve position is fully open or fully closed.

With position signal type (K type)

The valve is opened and closed by the switch circuit, and the current signal corresponding to the valve opening and closing angle is output.

Opening signal type (R type)

The valve opening angle is controlled by the switch circuit, and the potentiometer outputs a resistance signal corresponding to the position of the valve opening.

Intelligent adjustment type (A type)

The regulation and control are realized by receiving a standard signal of 4-20 mA.DC, 0-10 V.DC or 1-5 V.DC output from a computer or industrial instrument, and a standard feedback signal of 4-20 mA.DC is output.

Explosion-proof Electric Actuators Specifications

Power: DC 24V AC 110V 220V

Opening and closing time: 10/S-100/S

Torque: 6N.M to 2000N.M

Protection: IP67 rating

Explosion-proof: EX DII BT4 (optional)

Explosion-proof Electric Actuators Applications

Explosion-proof Electric Actuators apply to different kinds of valves for stainless steel pipeline systems, such as butterfly valves, butterfly-type ball valves, and ball valves.
