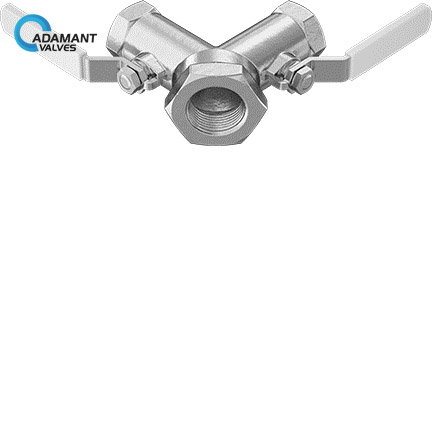

AV-25DS Dual Shut-Off Threaded Diverting Valves

Availability : In stock

Valve Type: Ball

Seal Material: PTFE Plastic

For Use With:

NPT Female × NPT Female × NPT Female: Air, Water
NPT Female × NPT Male × NPT Male: Air, Argon, Helium, Krypton, Neon, Oil, Water, Xenon

Max. Pressure:

NPT Female x NPT Female x NPT Female: 550 psi @ 150℉
NPT Female x NPT Male x NPT Male: 600 psi @ 200℉

Operating Temp. :

NPT Female x NPT Female x NPT Female: Not Rated
NPT Female x NPT Male x NPT Male: -40 to 365℉

Flow Pattern: Y-Pattern

Dual Shut-Off Threaded Diverting Valves Description

Control flow in two directions from a single source—these valves have two handles for the independent operation of each outlet. They can direct flow from the center-port inlet to one side-port outlet at full capacity, direct flow to both side-port outlets simultaneously at reduced capacity, or shut off flow to both outlet ports completely. Valves are standard ports, so they slightly restrict flow.

Dual Shut-Off Threaded Diverting Valves Specifications

Inlet Pipe Size	Outlet Pipe Sizes	Flow Pattern	Max. Pressure	Temp. Range, ℉	End-to-End Lg.
NPT Female x NPT Female x NPT Female
1	3/4 x 3/4	Y-Pattern	550 psi @ 150℉	–	3 7/16”
1 1/4	3/4 x 3/4	Y-Pattern	550 psi @ 150℉	–	3 7/16”
NPT Female x NPT Male x NPT Male
1	3/4 x 3/4	Y-Pattern	600 psi @ 150℉	-40 to 365℃	3 1/4”
