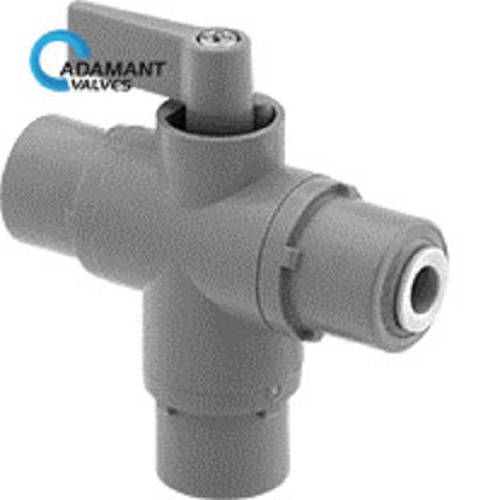

AV-25PC Diverting Valves with Push-to-Connect Fittings

Availability : In stock

Valve Type: Ball

Seal Material: Buna-N Rubber

For Use With:

Nylon Plastic Body: Air, Argon, Citric Acid (25% Concentration, Deionized Water, Diesel Fuel, Ethylene Glycol, Helium Kerosene, Krypton, Mineral Spirits, Neon, Nitrogen, Oil, Propane, Salt Water, Soap Solutions, Water, Xenon
Polypropylene Plastic Body: Air, Argon, Carbon Dioxide, Citric Acid (100% Concentration), Deionized Water, Ethylene Glycol, Fuel Oil, Helium, Krypton, Methanol, Natural Gas, Neon, Nitrogen, Propane, Salt Water, Soap Solutions, Water, Xenon
PVC Plastic Body: Air, Argon, Carbon Dioxide, Deionized Water, Ethylene Glycol, Fuel Oil, Helium, Krypton, Methanol, Mineral Spirits, Natural Gas, Neon, Nitrogen, Propane, Salt Water, Soap Solutions, Water, Xenon

Max. Pressure: 125 psi @ 140° F

Temp. Range: 35 to 140℉

Flow Pattern: L-Pattern

Diverting Valves with Push-to-Connect Fittings Description

Insert tubing into the fittings on these valves—no heat, solder, or flux is required. They divert flow between ports in tubing lines. Turn the handle to direct flow from the bottom-port inlet to either side-port outlet or shut off flow completely. These valves are standard ports, so they slightly restrict flow.

Nylon valves are more impact-resistant than PVC or polypropylene valves.

Polypropylene valves are more corrosion-resistant than PVC or nylon valves.

Diverting Valves with Push-to-Connect Fittings Specifications

For Tube OD	Flow Pattern	Flow Coefficient (Cv)	Max. Pressure	Temp. Range, °F	End-to-End Lg.
Black Nylon Plastic Body Push to Connect × Push to Connect × Push to Connect
1/4”	L-Pattern	0.6	125 psi @ 140 ℉	35 to 140	2 1/2”
5/16”		Not Rated	125 psi @ 140 ℉	35 to 140	2 5/8”
3/8”		1.6	125 psi @ 140 ℉	35 to 140	2 1/2”
Black Polypropylene Plastic Body Push to Connect × Push to Connect × Push to Connect
1/4”	L-Pattern	0.6	125 psi @ 140 ℉	35 to 140	2 1/2”
5/16”		Not Rated	125 psi @ 140 ℉	35 to 140	2 5/8”
3/8”		1.6	125 psi @ 140 ℉	35 to 140	2 1/2”
Dark Gray PVC Plastic Body Push to Connect × Push to Connect × Push to Connect
1/4”	L-Pattern	0.6	125 psi @ 140 ℉	35 to 140	2 1/2”
5/16”		Not Rated	125 psi @ 140 ℉	35 to 140	2 5/8”
3/8”		1.6	125 psi @ 140 ℉	35 to 140	2 1/2”
