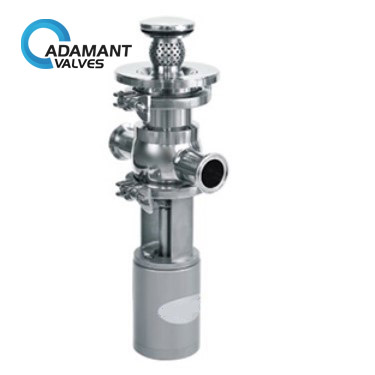

AV-5CD Cleaning Drain Valve

Cleaning Drain Valve Description

The cleaning drain valve mainly solves the problem that cleaning ball long-term bubbles in the medium of the dead leg so that easy to produce bacteria to pollute the media. Cleaning Drain Valve begins cleaning when it opens. It prevents cleaning the ball from the medium to avoid the dead angle.

The cleaning Drain Valve is designed for pipeline and tank cleaning equipment online cleaning line.

Cleaning Drain Valve Specifications

Size: DN25/1″ to DN100/4″
Temperature: 130℃
Pressure: 10bar
Air supply: 4-7bar
Material: ASTM 304/1.4301，316L/1.4404
Gaskets: EPDM、FPM、HNBR，FDA177.2600
inner surface treatment: Ra<0.8μm
Surface treatment: sandblasting, polishing
Configuration options: position sensor, the control unit
Certificate: 3-A-53-06, PED/97/23/EC, FDA177.2600

Cleaning Drain Valve Applications

1)The bottom of the tank cleaning can be online tank bottom cleaning, cleaning fluid recovery, leak detection valve, high efficiency, economy, no dead angle, no detention

2)The tank wall and the pipeline cleaning
