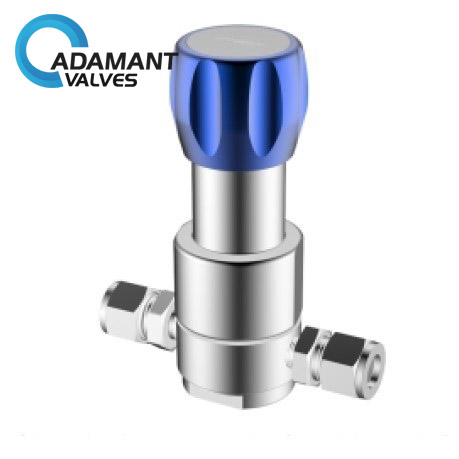

AV-5BR Back Pressure Regulator BPR02

Availability : In stock

Working temperature	-40 to 66℃
Operating Conditions	0-60 psig (0-4.0 barg)
Body material	316L Stainless Steel, Monel, Or Hastelloy C-22, Nickle Plated Brass
Connection	1/8” or 1/4” female pipe threads,

Back Pressure Regulator BPR02 Description

Back Pressure Regulator BPR02 is a device used to accurately control the pressure of a system, by opening just as much as is needed to return to normal pressure levels. This regulator is designed to provide precise inlet, upstream, or back pressure control with corrosive media and environments. The large convoluted diaphragm provides the user with greater sensitivity to outlet pressures.

Back Pressure Regulator BPR02 Specifications

Working temperature	-40 to 66℃
Operating Conditions	0-60 psig (0-4.0 barg)
Body material	316L Stainless Steel, Monel, Or Hastelloy C-22, Nickle Plated Brass
Connection	1/8” or 1/4” female pipe threads,

Back Pressure Regulator BPR02 Applications

Back Pressure Regulator BPR02 is used in maintaining upstream pressure and protecting sensitive equipment in sampling systems used in many industrial facilities.
